Product Model

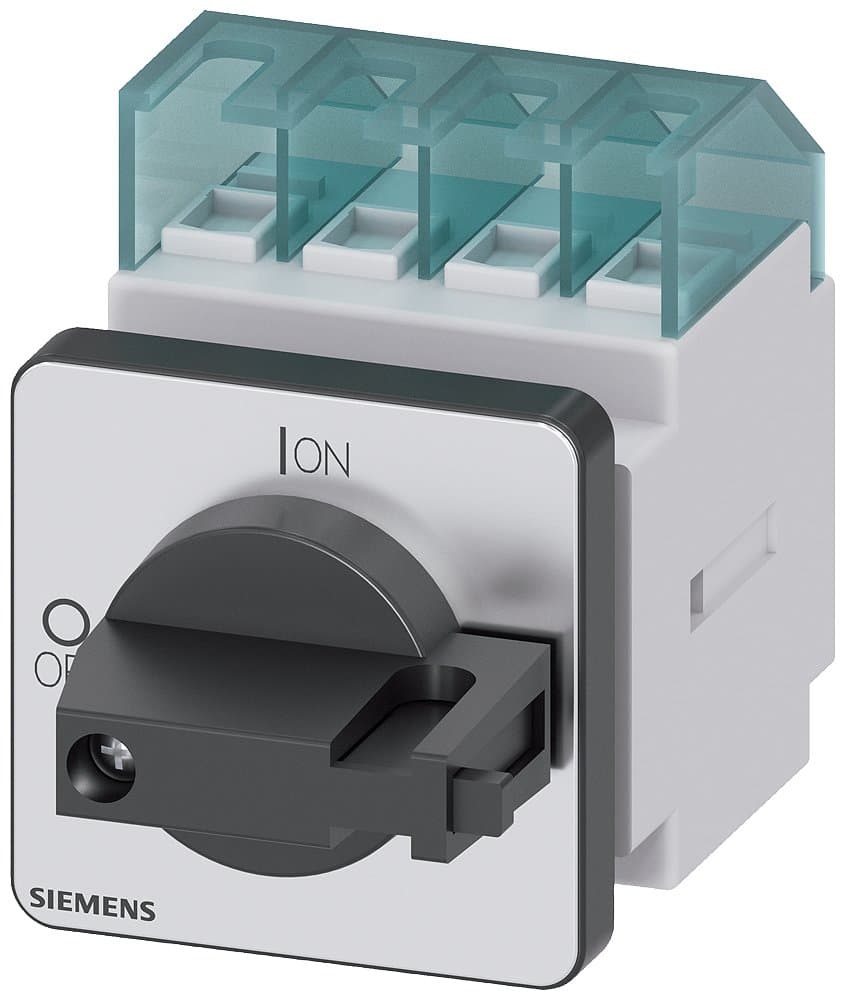

3LD2022-1TL11
Selling Points
- 1Designed for main switch applications with 16 A Iu.
- 2Front-mounted, knob-operated mechanism for secure operation.
- 3Suitable for floor mounting and front mounting in panel doors.
- 4Handles are IP65 rated and CSA certified for Type 1, 4X, and 12 applications.
- 5Acts as an enclosure disconnect when short circuit protection is provided upstream of the switch.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P+N, with selector switch operation mechanism, black handle, flush mounted, four-hole installation on cabinet door, AC-23A/7.5KW | Installation Type | Flush mounted cabinet door with four-hole installation |
Other | AC-23A/7.5KW | Number of Poles | 3P+N |
In(A) | 16 | Specification | 3LD20【16A】 |
Switch Type | With selector switch operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2022-1TL11 |
Specifications may be subject to change without notice
