Product Model
3LD2044-1TL53
Selling Points
- 1Reliable emergency switching-off solution for critical applications.
- 24-pole design with 16A current rating for high performance.
- 3Floor mounting with door for easy access and maintenance.
- 4Operating power at AC-23 A 400 V: 7.5 kW for efficient operation.
- 5Part of Siemens' SENTRON series of non-fused switch disconnectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

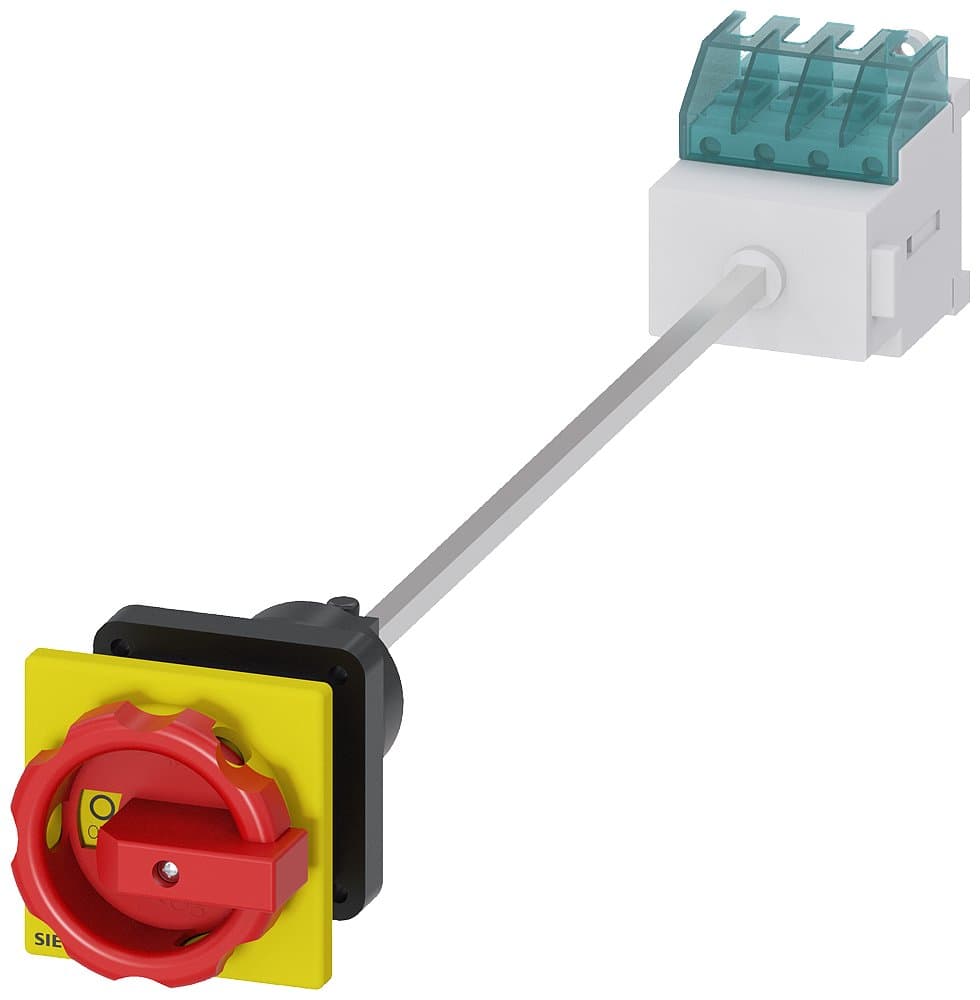

Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P+N, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, center hole in cabinet door, AC-23A/7.5KW | Installation Type | Base-mounted installation, center hole in cabinet door |
Other | AC-23A/7.5KW | Poles | 3P+N |
In(A) | 16 | Specification | 3LD20【16A】 |
Switch Type | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2044-1TL53 |
Specifications may be subject to change without notice
