Product Model
3LD2050-0TK13
Selling Points
- 1Ensures safe and immediate shutdown in emergency situations.
- 2Handles up to 16 A of current and 7.5 kW of operating power at AC-23 A 400 V.
- 3Conveniently mounted on the inside of panel doors for easy access.
- 4Easy to operate with a simple knob mechanism.
- 5Meets IEC 60947-3 and UL 508 standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V) | 690 | Insulation Voltage(V) | 690 |

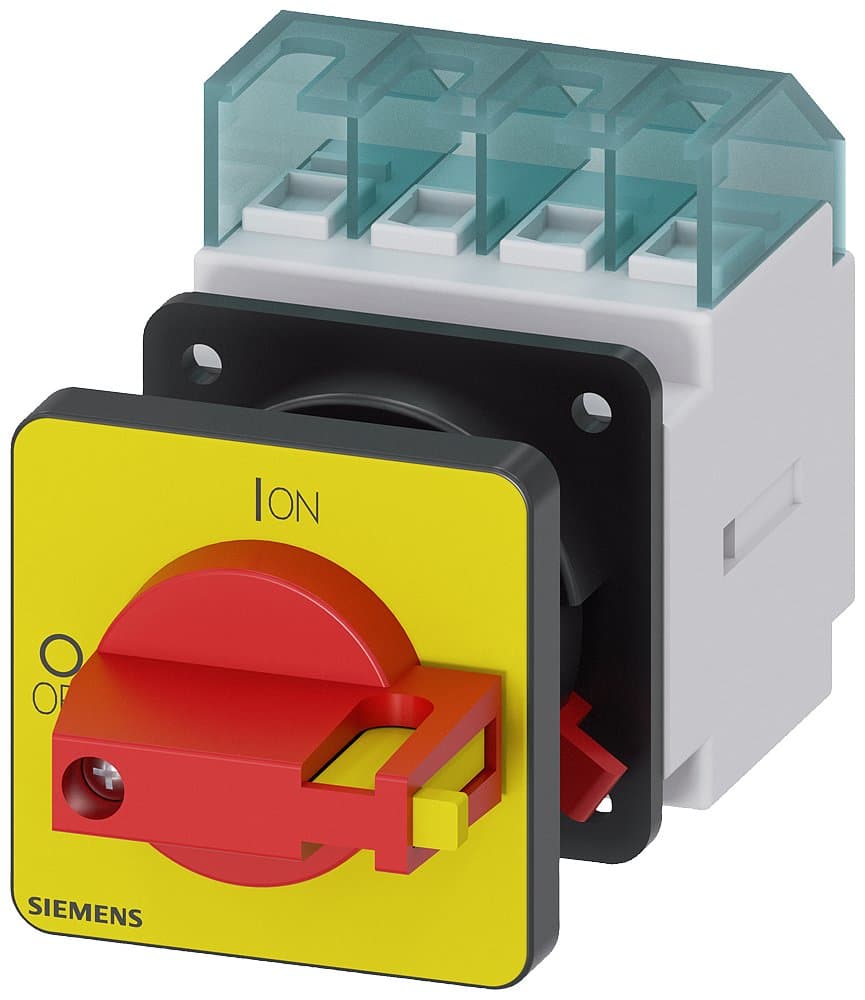

Description | Isolator Switch, Main Control and Emergency Stop Switch, 3LD2, 16A, 3P, With Selector Switch Operation Mechanism, Red/Yellow Handle, Flush Mounting, Cabinet Door Central Hole Installation, AC-23A/7.5KW | Installation Type | Flush Mounting in Cabinet Door Central Hole |
Other | AC-23A/7.5KW | Number of Poles | 3P |
In(A) | 16 | Specification | 3LD20【16A】 |
Switch Type | With Selector Switch Operation Mechanism, Red/Yellow Handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2050-0TK13 |
Specifications may be subject to change without notice
