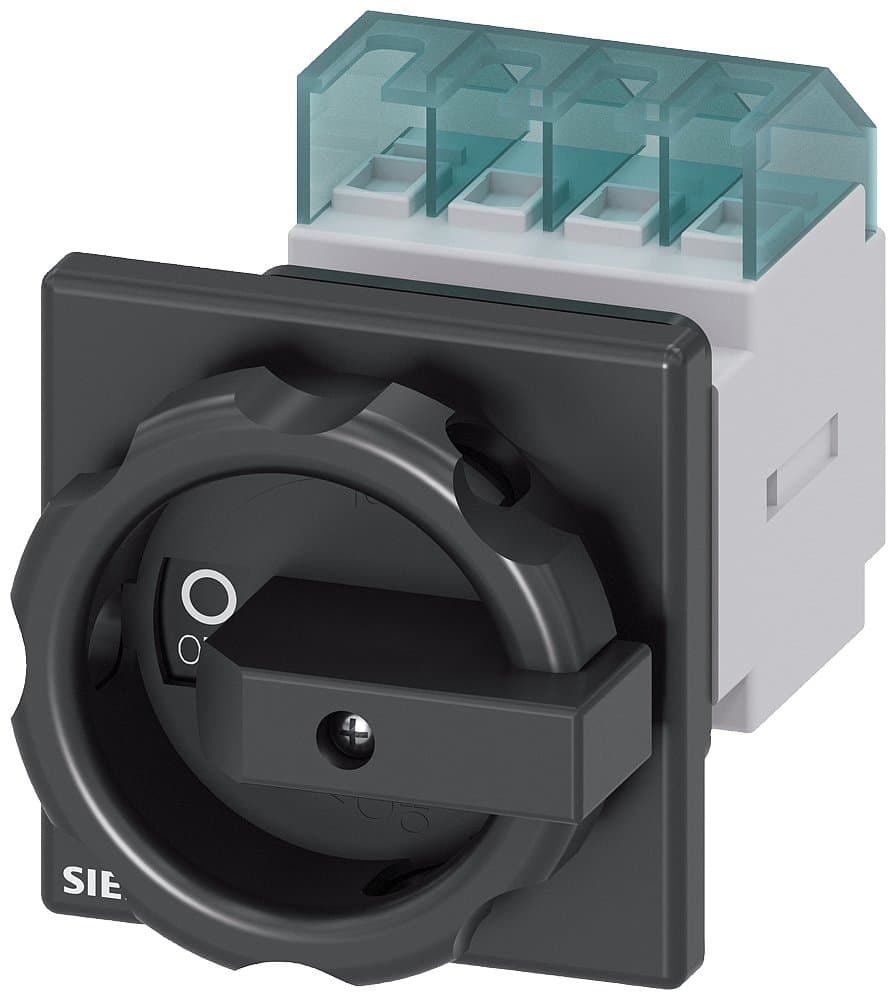

Product Model
3LD2054-0TK51
Selling Points
- 1High-power main switch with a 3-pole design.
- 2Current rating of 16 A.
- 3Operating power of 7.5 kW at AC-23 A at 400 V.
- 4Front-mounted, rotary operating mechanism for easy operation.
- 5Central mounting handle with a 22.5 mm diameter for secure installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, black handle, flush-mounted, center hole installation on cabinet door, AC-3/5.5KW; AC-23A/7.5KW | Installation Type | Flush-mounted cabinet door center hole installation |
Other | AC-3/5.5KW; AC-23A/7.5KW | Number of Poles | 3P |
In(A) | 16 | Specification | 3LD20【16A】 |
Switch Type | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2054-0TK51 |
Specifications may be subject to change without notice
