SiemensIsolator Switch
Product Model

3LD2054-1TL51

Manufacturer

Siemens

Category

Isolator Switch

Product ID

184159

In Stock
Last updated: 2025/5/13
View Specifications

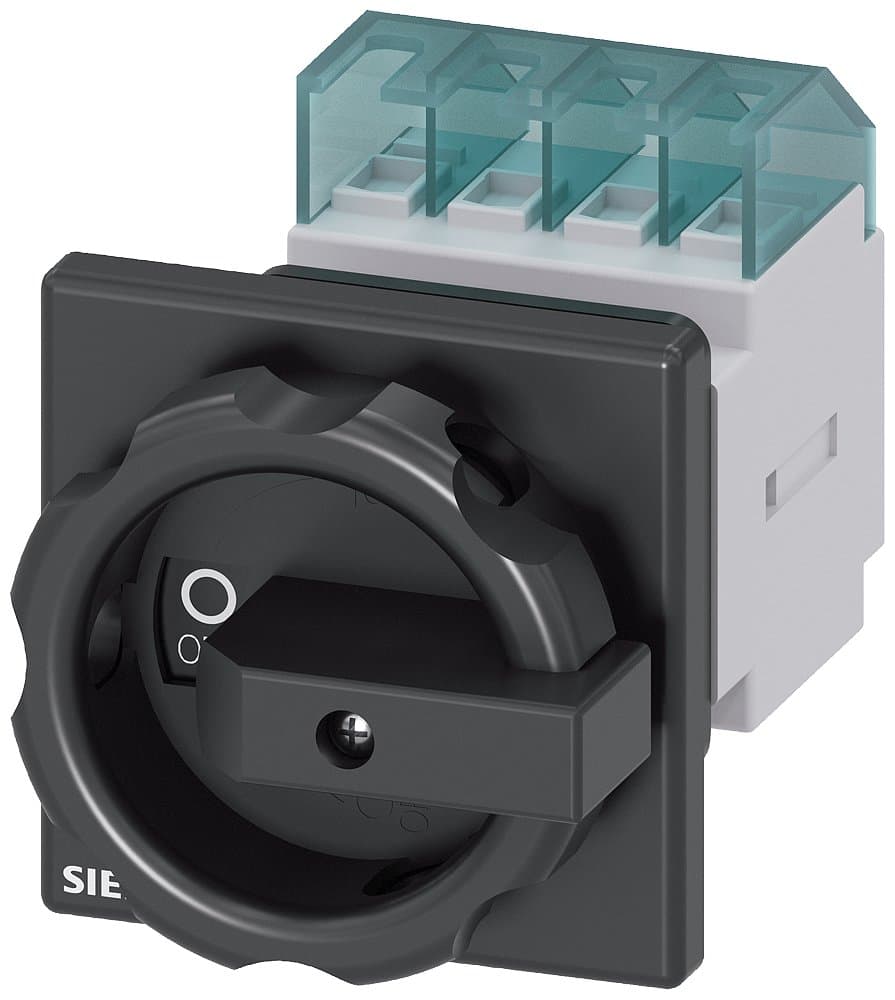

Siemens 3LD2054-1TL51

Selling Points

  • 1High Amperage Rating: 16 A for reliable electrical operation.
  • 2Durable Enclosure: NEMA 1/3R/4X/12/IP65 for robust protection against environmental factors.
  • 3Rotary Actuator: Short rotary knob actuator for easy and precise control.
  • 4Versatile Mounting: Central mounting of the handle with 22.5 mm of clearance.
  • 5Operational Flexibility: Compatible with 50/60 Hz frequency and -25 to 55°C temperature range.
Product Details
3LD2054-1TL51
Siemens

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
AC Rated Voltage (V)
690
Insulation Voltage (V)
690
Description
Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P+N, with rotary operating mechanism, black handle, flush mounted, center hole in cabinet door, AC-3/5.5KW; AC-23A/7.5KW
Installation Type
Flush mounting in cabinet door with center hole
Other
AC-3/5.5KW; AC-23A/7.5KW
Number of Poles
3P+N
In(A)
16
Specification
3LD20【16A】
Switch Type
With rotary operating mechanism, black handle
Lifecycle
Delivery Release (PM300)
Country of Origin
Germany
ECCN
N
AL
N
Model Number
3LD2054-1TL51

Specifications may be subject to change without notice
