Product Model
3LD2103-4VP53
Selling Points
- 1Emergency Switching-Off Capability: Quickly disconnect power in emergency situations.
- 26-Pole Configuration: Designed for robust and reliable operation.
- 3Rated Current: 25 A: Handles high current safely and efficiently.
- 4Operating Power at AC-23 A 400 V: 9.5 kW: Suitable for demanding industrial applications.
- 5Front-Mounted Design: Easy access and maintenance-friendly design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

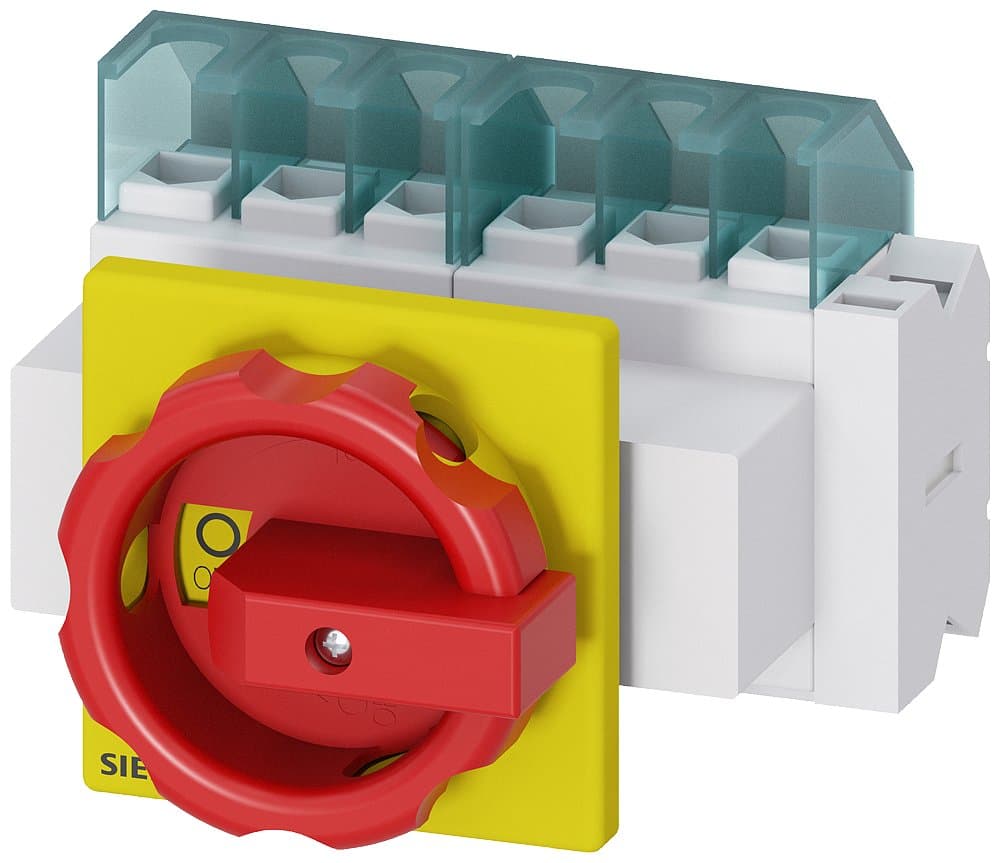

Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 6P, with rotary operating mechanism, red/yellow handle, flush mounted, four-hole installation on cabinet door, AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Mounting Type | Flush mounted cabinet door with four-hole installation |
Other | AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Poles | 6P |
In(A) | 25 | Specification | 3LD21【25A】 |
Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2103-4VP53 |
Specifications may be subject to change without notice
