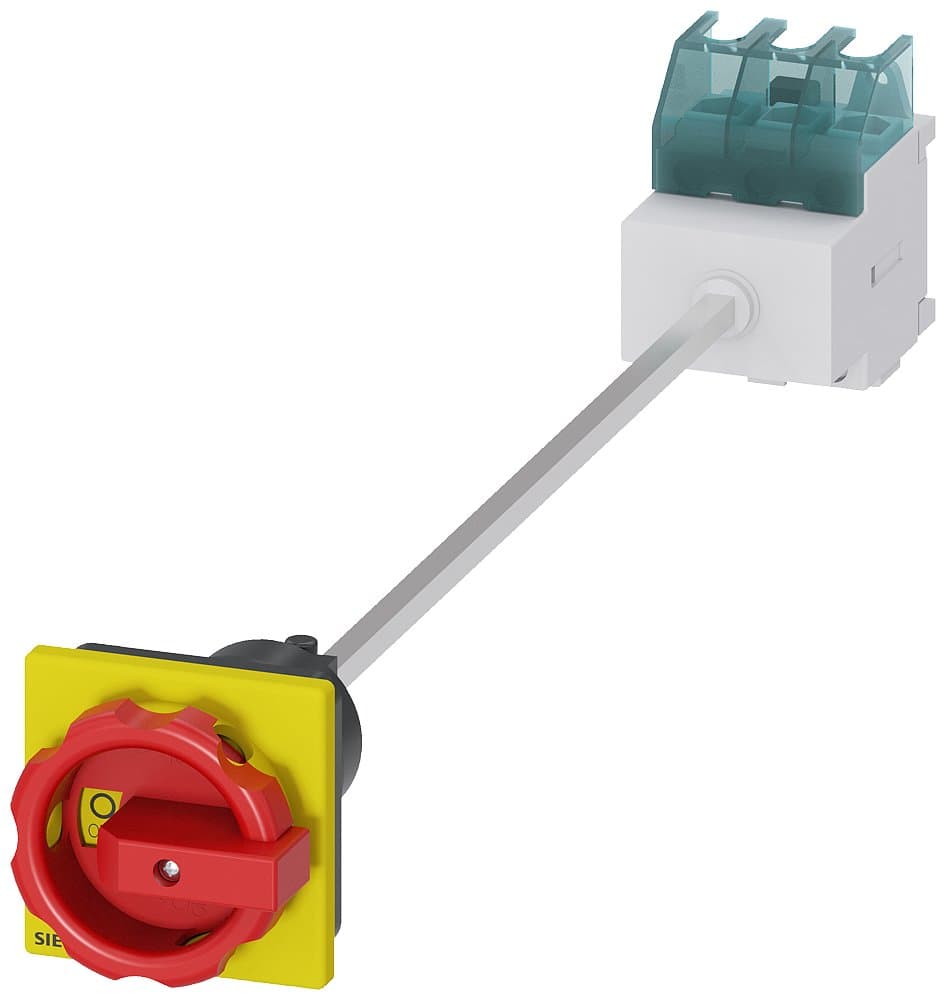

Product Model
3LD2113-0TK53
Selling Points
- 1High Current Rating: 25A Iu for reliable switching operations.
- 2Emergency Switching: Designed for emergency shutdowns with a 9.5 kW operating power at AC-23 A 400 V.
- 3Floor Mounting: Easy installation with door coupling and 4-hole mounting of the handle.
- 4Rotary Operating Mechanism: User-friendly operation with a red/yellow color scheme for clear visibility.
- 5Compliance with Regulations: Meets RoHS and WEEE directives, ensuring environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, four-hole mounting on cabinet door, AC-23A/9.5KW | Installation Type | Base-mounted installation, four-hole mounting on cabinet door |
Other | AC-23A/9.5KW | Poles | 3P |
In(A) | 25 | Specification | 3LD21【25A】 |
Switch Type | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2113-0TK53 |
Specifications may be subject to change without notice
