Product Model
3LD2113-3VK51
Selling Points
- 16-pole main switch for comprehensive control.
- 225A Iu rating for reliable power handling.
- 3Floor mounting with door coupling for easy installation.
- 4Compact design for space-efficient applications.
- 5IEC 947-1 rated and CE marked for safety compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

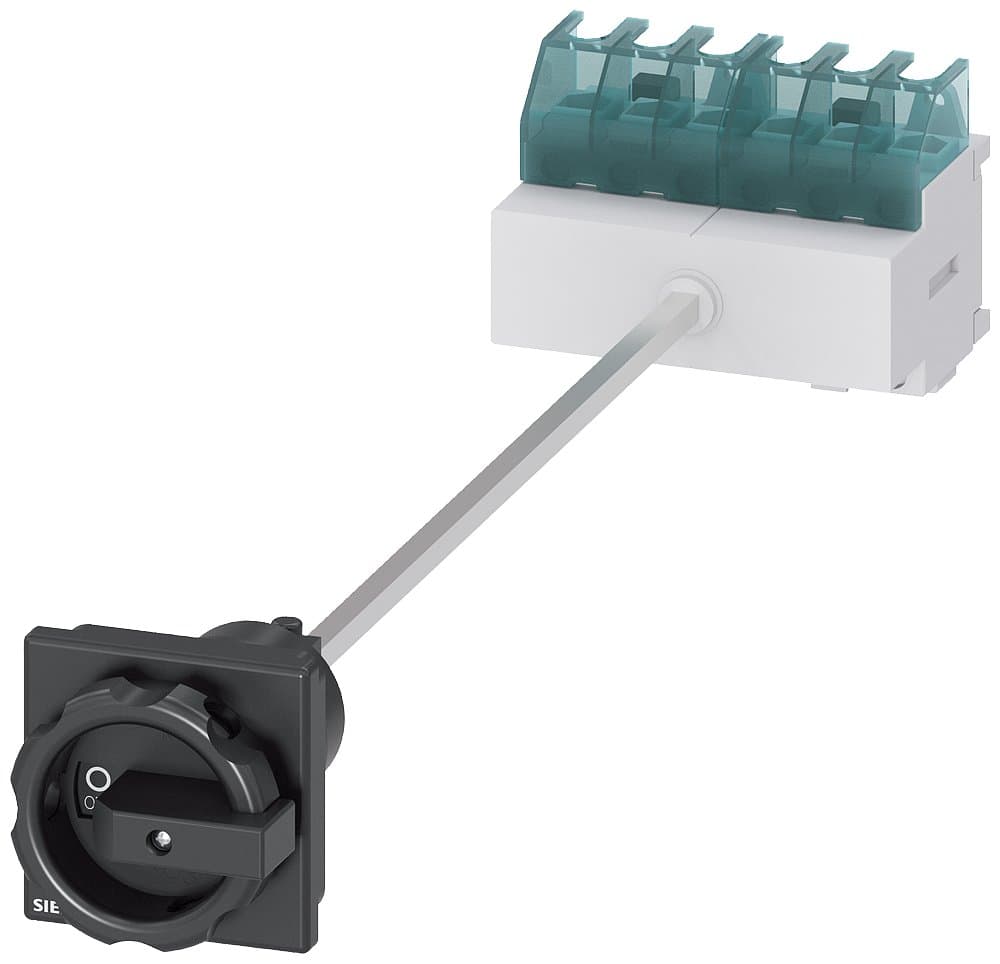

Description | Isolator switch, main and emergency stop switch, 3LD2, 25A, 6P, rotary operating mechanism with door coupling, black handle, base-mounted installation, four-hole mounting on cabinet door, AC-3/7.5KW; AC-23A/9.5KW | Installation Type | Base-mounted installation, four-hole mounting on cabinet door |
Other | AC-3/7.5KW; AC-23A/9.5KW | Number of Poles | 6P |
In(A) | 25 | Specification | 3LD21【25A】 |
Switch Type | Rotary operating mechanism with door coupling, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2113-3VK51 |
Specifications may be subject to change without notice
