Product Model

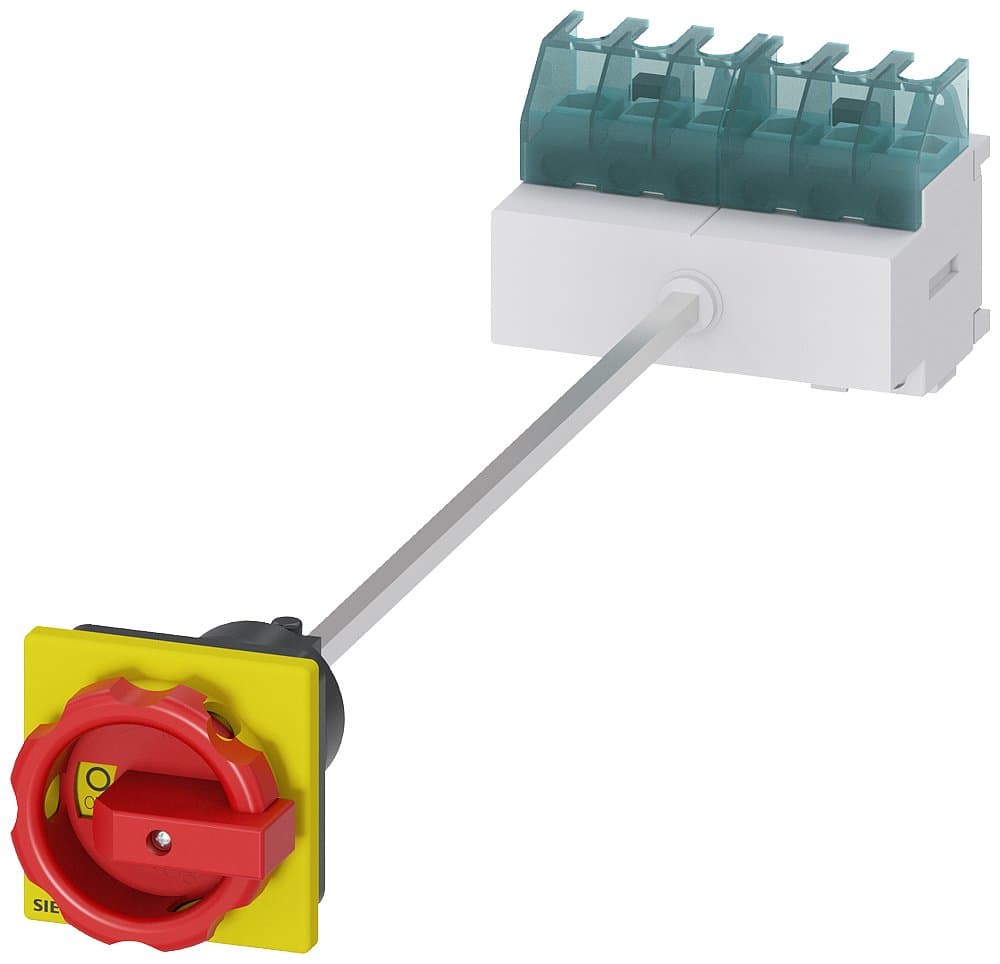

3LD2113-3VK53
Selling Points
- 1Emergency Switching-Off Capability: Quickly disconnect power in emergency situations.
- 2High Current Rating: Handles 25 A with a short circuit current rating of 50 kA.
- 3Durable Enclosure: Features an IP65-rated enclosure for robust protection against environmental factors.
- 4Rotary Actuator: Easy-to-use rotary handle for smooth operation.
- 5Floor Mounting with Door: Convenient floor mounting with a door for secure access and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 6P, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, cabinet door with four-hole mounting, AC-3/7.5KW; AC-23A/9.5KW | Installation Type | Base-mounted installation, cabinet door with four-hole mounting |
Other | AC-3/7.5KW; AC-23A/9.5KW | Poles | 6P |
In(A) | 25 | Specification | 3LD21【25A】 |
Switch Type | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2113-3VK53 |
Specifications may be subject to change without notice
