Product Model

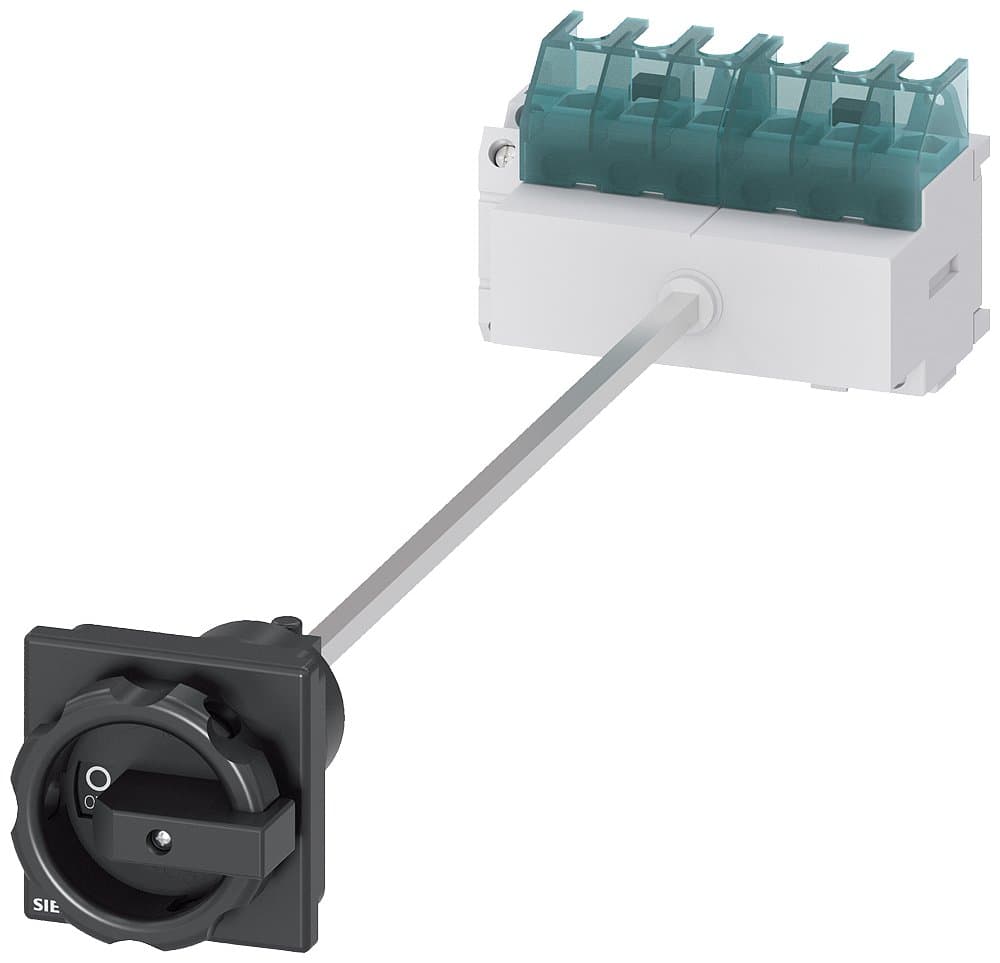

3LD2113-4VP51
Selling Points
- 1High Current Rating: 25A current rating ensures reliable power control in industrial settings.
- 2Compact Design: Floor mounting with door coupling for efficient space utilization.
- 3Safety Features: Designed for main switches with 6-pole configuration for enhanced safety.
- 4Operational Power: 9.5 kW operating power at AC-23 A at 400 V.
- 5Versatile Mounting: Suitable for various mounting options, including floor and door coupling configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
Description | Isolator switch, main and emergency stop switch, 3LD2, 25A, 6P, rotary operating mechanism with door coupling, black handle, base-mounted installation, cabinet door four-hole mounting, AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Installation Type: | Base-mounted installation, cabinet door four-hole mounting |
Other: | AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Number of Poles: | 6P |
In(A): | 25 | Specification: | 3LD21【25A】 |
Switch Type: | Rotary operating mechanism with door coupling, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2113-4VP51 |
Specifications may be subject to change without notice
