Product Model
3LD2144-1TL51
Selling Points
- 1High current rating of 25A for efficient power handling.
- 24-pole configuration for versatile electrical connections.
- 3Floor mounting with door coupling for easy installation and maintenance.
- 4Operating power of 9.5 kW at AC-23 A at 400 V for reliable operation.
- 5IP65 rating for protection against dust and water, ensuring durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

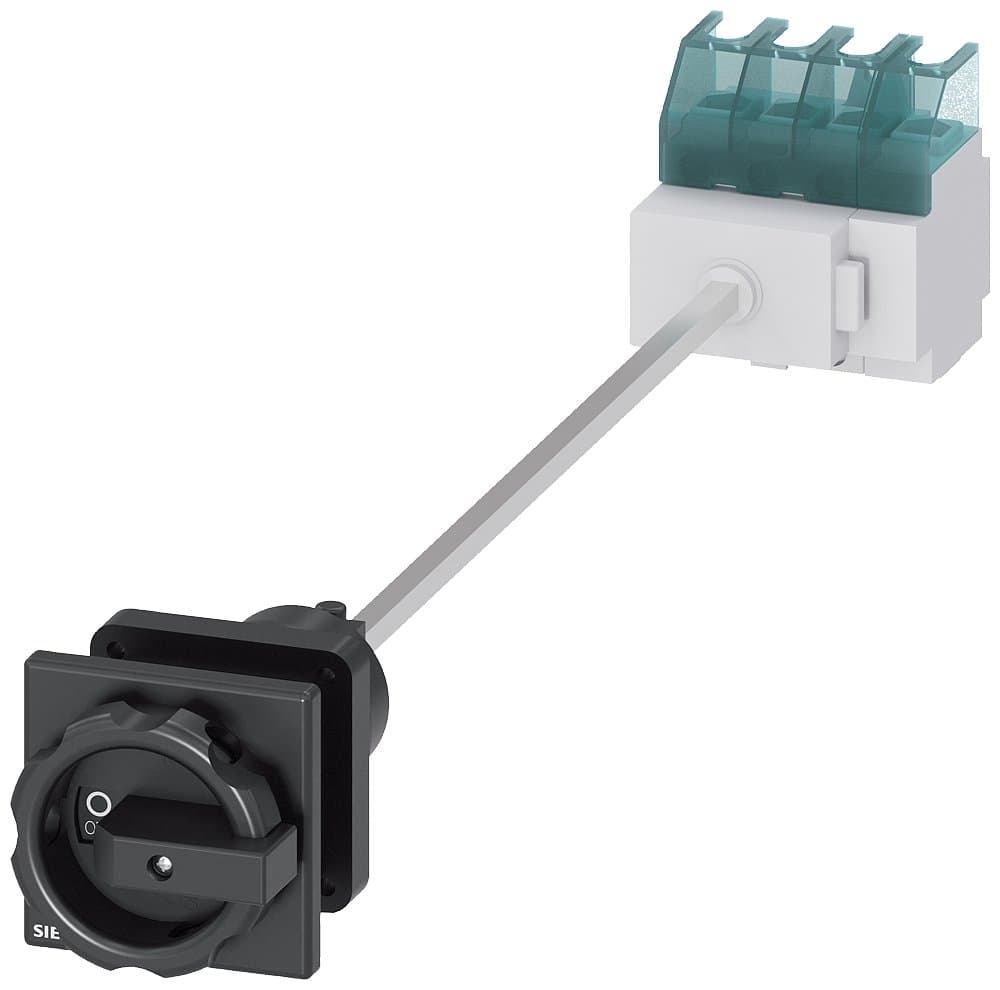

Description | Isolator switch, main and emergency stop switch, 3LD2, 25A, 3P+N, rotary operation mechanism with door coupling, black handle, base-mounted installation, center hole in cabinet door mounting, AC-23A/9.5KW | Installation Type | Base-mounted installation, center hole in cabinet door mounting |
Other | AC-23A/9.5KW | Number of Poles | 3P+N |
In(A) | 25 | Specification | 3LD21【25A】 |
Switch Type | Rotary operation mechanism with door coupling, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2144-1TL51 |
Specifications may be subject to change without notice
