Product Model

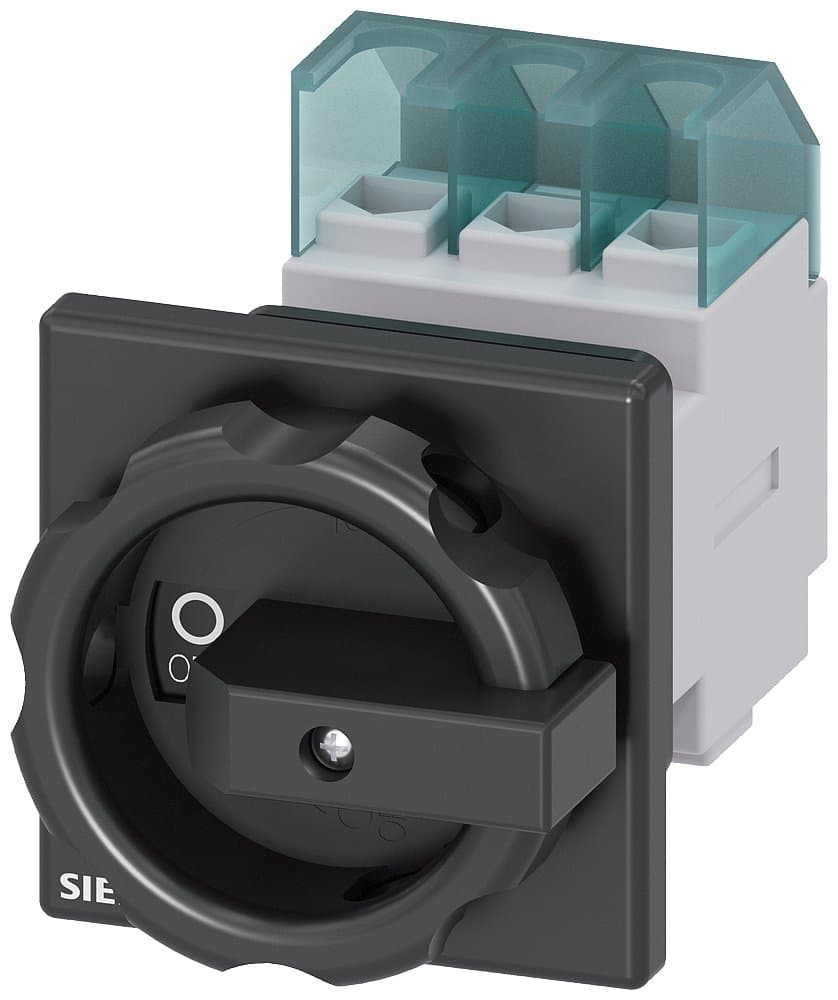

3LD2154-0TK51
Selling Points
- 1High-quality protective component for industrial applications.
- 23-pole switch disconnector with 25 A current rating.
- 3Front-mounted rotary operating mechanism for easy operation.
- 4Compact design for efficient power supply management.
- 5Essential element in protection against static electricity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main and emergency stop switch, 3LD2, 25A, 3P, with rotary operating mechanism, black handle, flush-mounted, cabinet door center hole installation, AC-3/7.5KW; AC-23A/9.5KW | Installation Type | Flush-mounted cabinet door center hole installation |
Other | AC-3/7.5KW; AC-23A/9.5KW | Number of Poles | 3P |
In(A) | 25 | Specification | 3LD21【25A】 |
Switch Type | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2154-0TK51 |
Specifications may be subject to change without notice
