Product Model

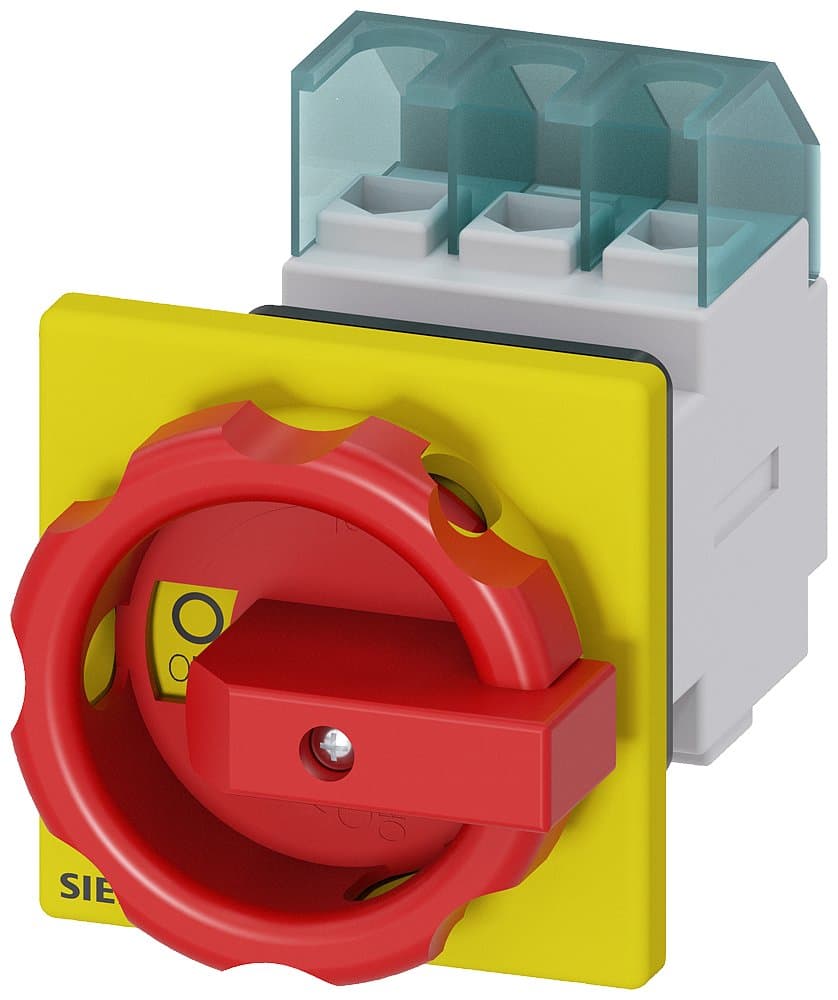

3LD2154-0TK53
Selling Points
- 1High-Power Capability: Handles up to 9.5 kW at 23 A, 400 V AC.
- 2Emergency Switching-Off: Designed for emergency shutdowns with a 3-pole configuration.
- 3IP65 Rating: Front-mounted with an IP65 rating for protection against dust and water.
- 4Operating Temperature Range: Operates between -25°C and 55°C.
- 5Rotary Actuator: Features a rotary actuator for smooth operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, with rotary operating mechanism, red/yellow handle, flush mounting, cabinet door center hole installation, AC-3/7.5KW; AC-23A/9.5KW | Installation Type | Flush mounting in cabinet door center hole |
Other | AC-3/7.5KW; AC-23A/9.5KW | Poles | 3P |
In(A) | 25 | Specification | 3LD21【25A】 |
Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2154-0TK53 |
Specifications may be subject to change without notice
