Product Model
3LD2154-1TP53
Selling Points
- 1Reliable Emergency Switching Solution: Designed for emergency shutdowns with a 3-pole configuration.
- 2High Current Rating: Handles 25A Iu and 9.5kW operating power at AC-23A 400V.
- 3Front-Mounted Design: Conveniently accessible for easy operation.
- 4Stable Operating Temperature: Operates between -25°C to 55°C.
- 5Durable Construction: Part of the robust Siemens SENTRON series.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

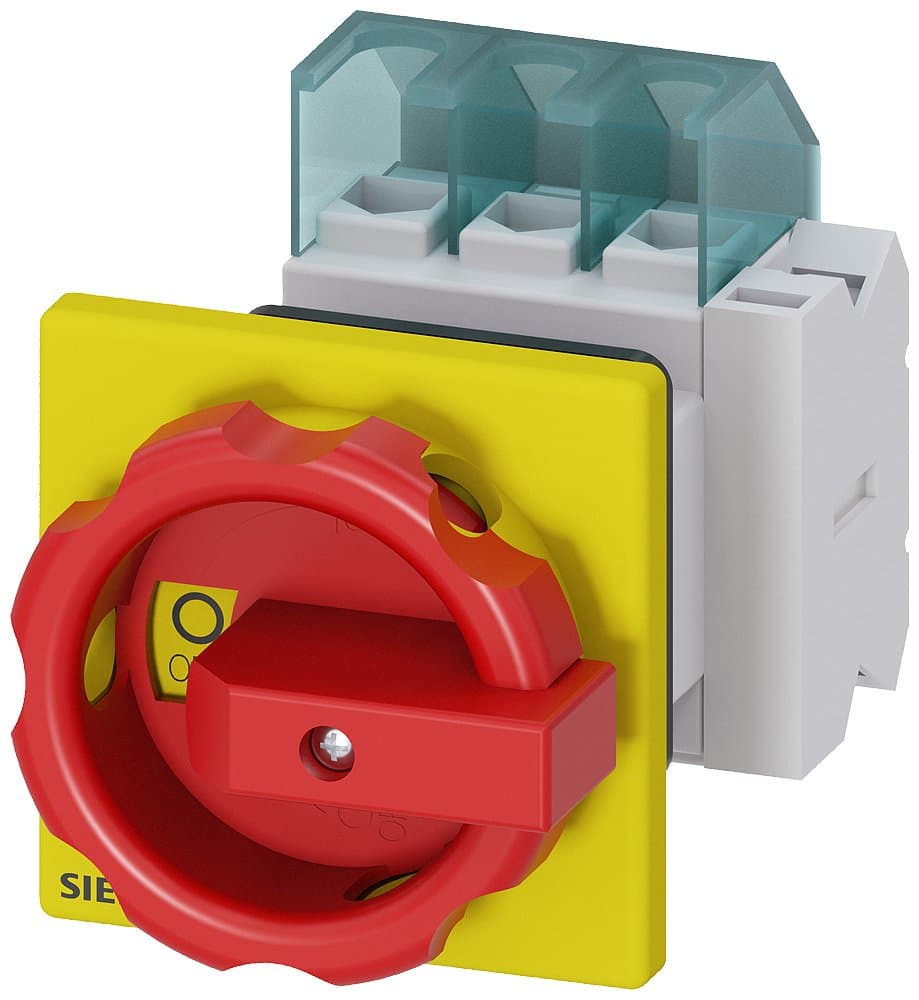

Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, with rotary operating mechanism, red/yellow handle, flush mounting, cabinet door center hole installation, AC-23A/9.5KW, 1NO+1NC | Installation Type: | Flush mounting in cabinet door center hole |
Other: | AC-23A/9.5KW, 1NO+1NC | Poles: | 3P |
In(A): | 25 | Specification: | 3LD21【25A】 |
Switch Type: | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2154-1TP53 |
Specifications may be subject to change without notice
