Product Model

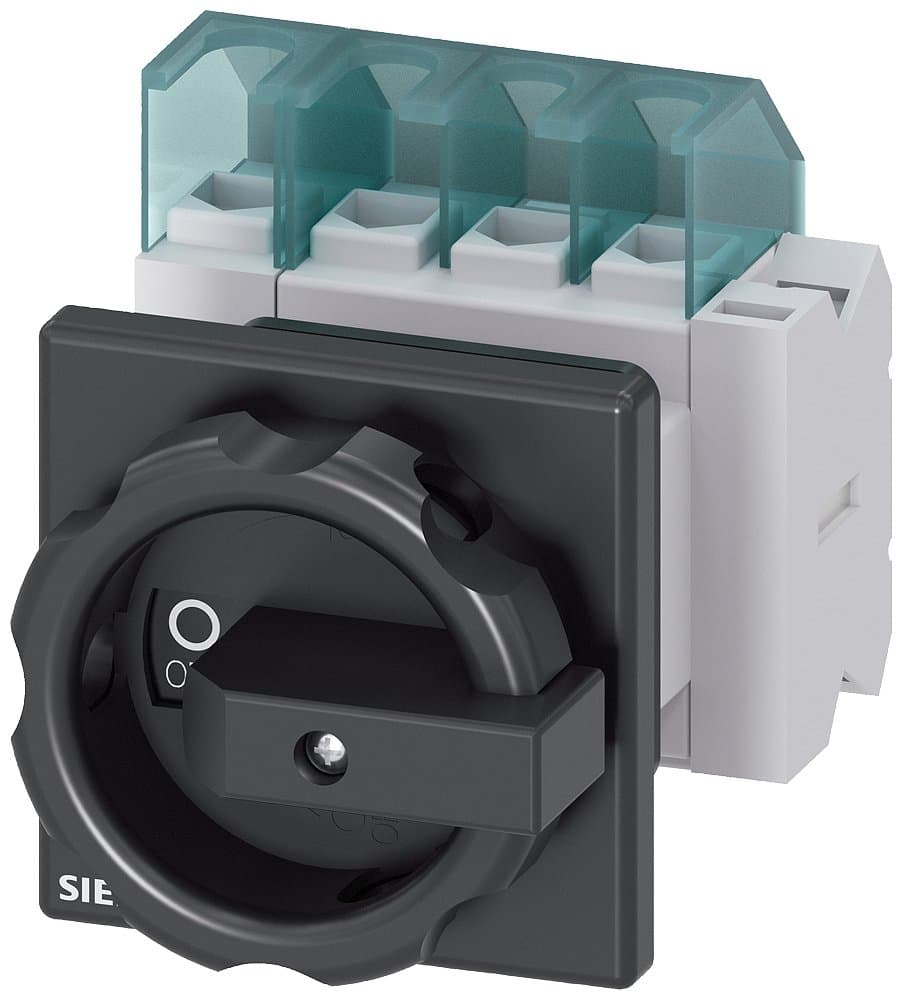

3LD2154-2EP51
Selling Points
- 1High Reliability: Designed for demanding industrial environments with a stable operating temperature range of -25°C to 55°C.
- 2IP65 Rating: Front-mounted with an IP65 rating for protection against dust and water.
- 3Switching Capacity: Handles up to 9.5 kW of operating power at AC-23 A at 400 V.
- 4Compact Design: Suitable for on-panel installation with a 3+N pole configuration.
- 5Durable Construction: Part of the SENTRON series, known for its robust and reliable performance in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P+N, with rotary operating mechanism, black handle, mounting in the center hole of the cabinet door, AC-23A/9.5KW, 1NO+1NC | Installation Type | Mounting in the center hole of the cabinet door |
Other | AC-23A/9.5KW, 1NO+1NC | Number of Poles | 3P+N |
In(A) | 25 | Specification | 3LD21【25A】 |
Switch Type | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2154-2EP51 |
Specifications may be subject to change without notice
