Product Model

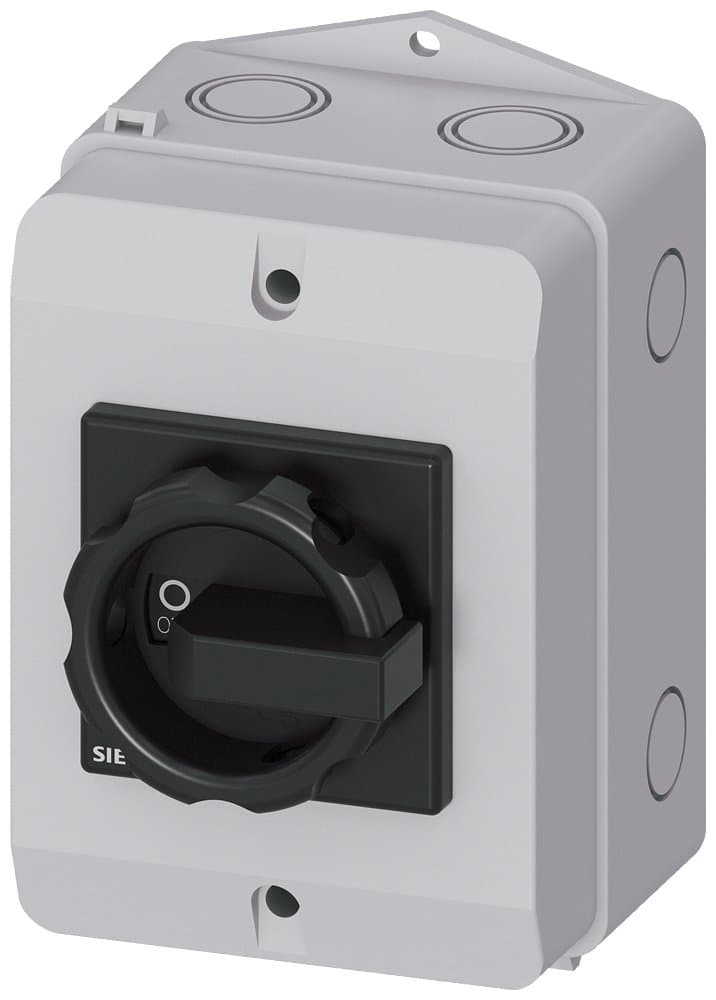

3LD2164-1GP51
Selling Points
- 1High Amperage Rating: 25A for efficient power handling.
- 2Durable Enclosure: IP65 rating ensures protection against dust and water.
- 3Rotary Actuator: Easy operation with a reliable rotary mechanism.
- 4Versatile Application: Suitable for main switch disconnector, safety switch, and maintenance/repair switch.
- 5Compliant with Regulations: Meets RoHS and WEEE directives for environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, metric threaded sealed connector, black handle, plastic housing installation, AC-23A/9.5KW, 1NO+1NC | Mounting Type | Plastic Housing Installation |
Terminal Type | N | Other | AC-23A/9.5KW, 1NO+1NC |
Number of Poles | 3P | In(A) | 25 |
Specification | 3LD21【25A】 | Switch Type | Metric Threaded Sealed Connector, Black Handle |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3LD2164-1GP51 |
Specifications may be subject to change without notice
