Product Model

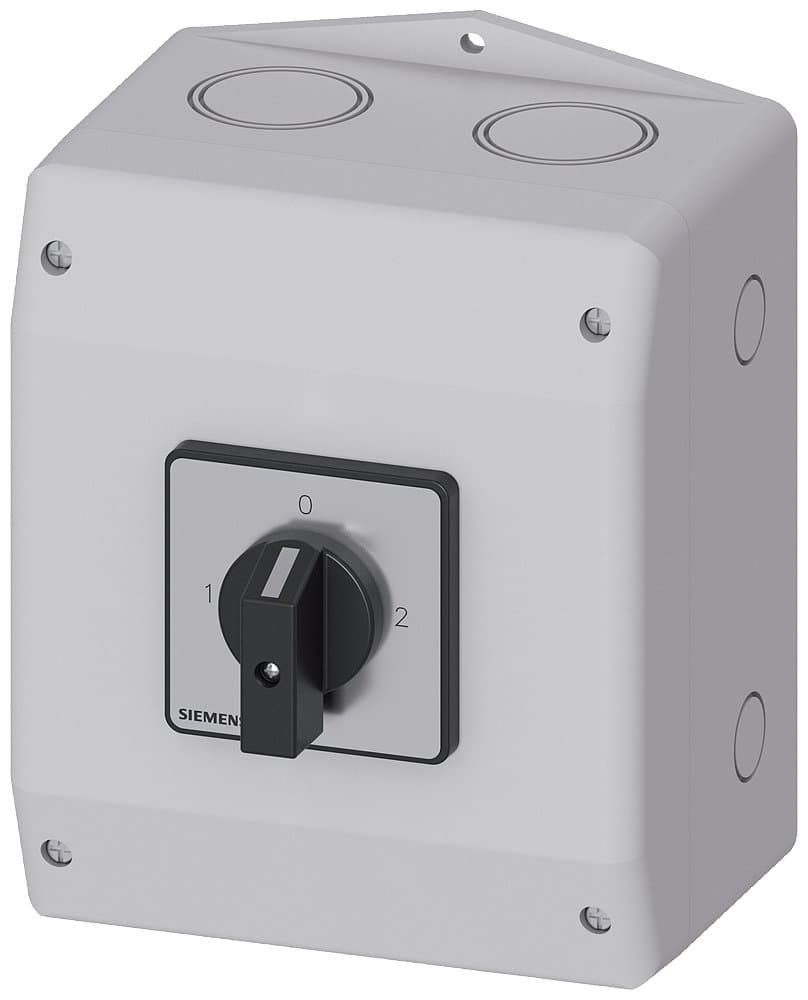

3LD2165-7UB01
Selling Points
- 1High Power Handling: Operates at AC-23 A at 400 V, delivering 9.5 kW of power.
- 2Molded-Plastic Encapsulation: Durable and resistant to environmental factors.
- 33-Pole Design: Suitable for various electrical configurations and applications.
- 4Change-Over Switch Functionality: Easily switches between different electrical circuits.
- 5Reliable and Safe Operation: Ensures safe electrical operations with its robust design and high current rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, Main control and emergency stop switch, 3LD2, 25A, 3P, Metric-threaded sealed connection, Transfer switch with selector switch operating mechanism, Handle cannot self-lock, Black handle, Plastic enclosure mounting, AC-3/7.5KW; AC-23A/9.5KW | Mounting Type | Plastic enclosure mounting |
Terminal Type | PE+N | Other | AC-3/7.5KW; AC-23A/9.5KW |
Number of Poles | 3P | In(A) | 25 |
Specification | 3LD21【25A】 | Switch Type | Metric-threaded sealed connection, Transfer switch with selector switch operating mechanism, Handle cannot self-lock, Black handle |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3LD2165-7UB01 |
Specifications may be subject to change without notice
