Product Model
3LD2203-1TP51
Selling Points
- 1High-Quality Electrical Solution: Designed for industrial use, ensuring reliability and efficiency.
- 23-Pole Configuration: Suitable for various electrical configurations, including 3-pole operations.
- 332A Rating: Handles currents up to 32A, making it versatile for different power requirements.
- 4690VAC Compatibility: Compatible with 690VAC systems, offering broad voltage range support.
- 5Front-Mounted Design: Easy installation with a front-mounted handle for convenient operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

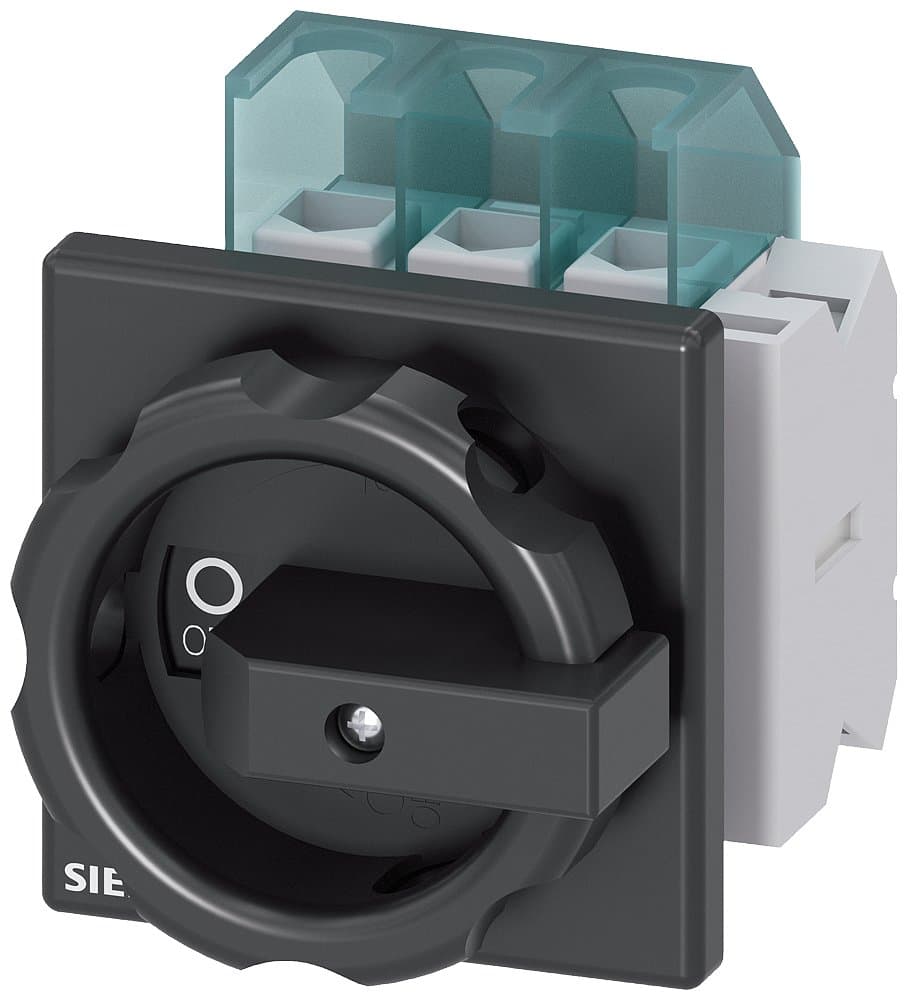

Description | Isolator switch, main and emergency stop switch, 3LD2, 32A, 3P, with rotary operating mechanism, black handle, flush-mounted, four-hole mounting on cabinet door, AC-23A/11.5KW, 1NO+1NC | Installation Type: | Flush-mounted cabinet door with four-hole mounting |
Other: | AC-23A/11.5KW, 1NO+1NC | Number of Poles: | 3P |
In(A): | 32 | Specification: | 3LD22【32A】 |
Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2203-1TP51 |
Specifications may be subject to change without notice
