Product Model
3LD2203-1TP53
Selling Points
- 1Reliable Emergency Switching-Off Solution: Designed for emergency situations, ensuring quick and safe shutdown.
- 23-Pole Design: Suitable for various electrical applications with a robust 3-pole configuration.
- 332 A Rating: Handles high current loads with a maximum rating of 32 amperes.
- 411.5 kW Operating Power: Efficiently manages operating power at AC-23 A 400 V.
- 5Front-Mounted and Rotary Mechanism: Easy to operate with a front-mounted rotary mechanism for convenient access.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

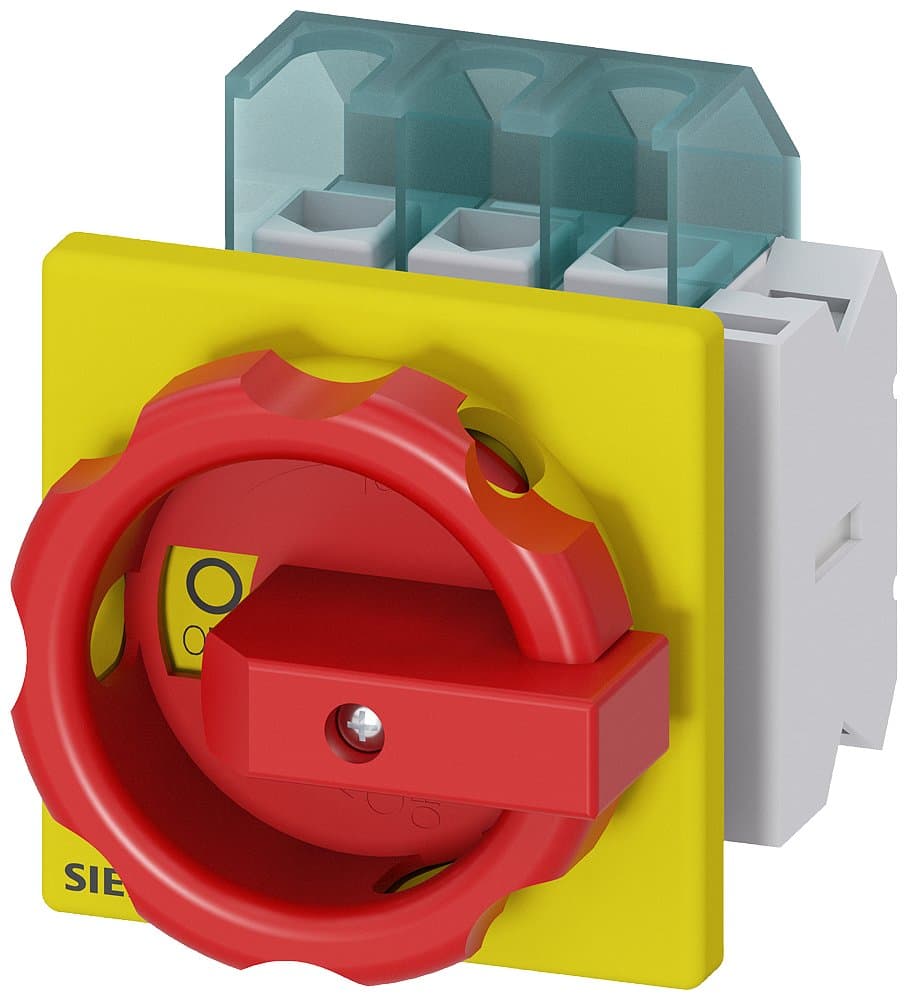

Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P, with rotary operating mechanism, red/yellow handle, flush-mounted, four-hole installation on cabinet door, AC-23A/11.5KW, 1NO+1NC | Installation Type | Flush-mounted cabinet door with four-hole installation |
Other | AC-23A/11.5KW, 1NO+1NC | Poles | 3P |
In(A) | 32 | Specification | 3LD22【32A】 |
Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2203-1TP53 |
Specifications may be subject to change without notice
