Product Model
3LD2213-0TK51
Selling Points
- 1Safety-Oriented Design: Meets EN 60204 machinery directive for enhanced safety.
- 2Versatile Applications: Suitable for multiple applications including main control and emergency stop switches.
- 3High Current Rating: Handles up to 32 A with a 3-pole configuration.
- 4Floor Mounting Option: Available for floor mounting with door coupling for easy installation.
- 5Reliable Performance: Ensures reliable operation with an operating power of 11.5 kW at AC-23 A at 400 V.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

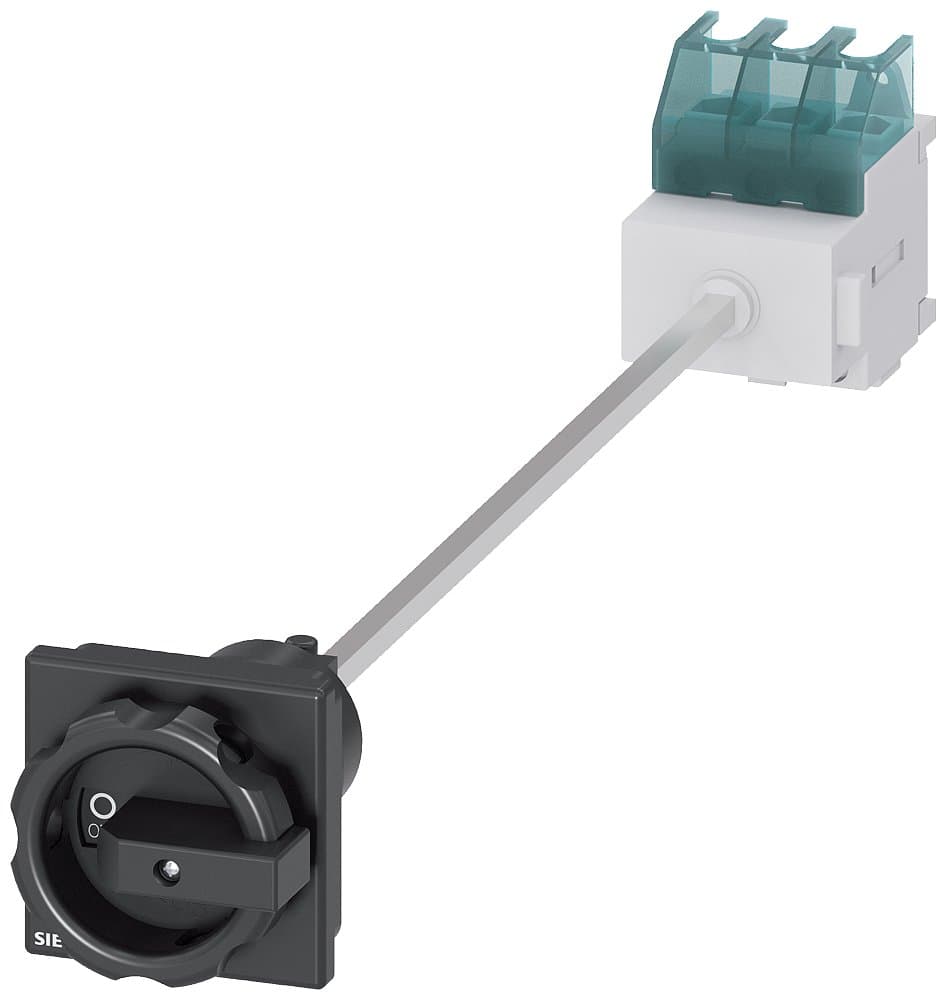

Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 32A, 3P, Rotary Operation Mechanism with Door Coupling, Black Handle, Base-Mounted Installation, Cabinet Door with Four-Hole Fixing, AC-23A/11.5KW | Installation Type: | Base-Mounted Installation, Cabinet Door with Four-Hole Fixing |
Other: | AC-23A/11.5KW | Number of Poles: | 3P |
In(A): | 32 | Specification: | 3LD22【32A】 |
Switch Type: | Rotary Operation Mechanism with Door Coupling, Black Handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2213-0TK51 |
Specifications may be subject to change without notice
