Product Model
3LD2217-0TK13
Selling Points
- 1Emergency Stop Functionality: Quickly disconnect power with the emergency stop switch.
- 23-Pole Configuration: Suitable for various electrical applications requiring a 3-pole switch.
- 332 A Current Rating: Handles up to 32 A of current, ensuring reliable operation.
- 411.5 kW Operating Power: Capable of handling 11.5 kW at 400 V AC.
- 5Floor Mounting with Door Coupling: Easy installation with floor mounting and door coupling options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

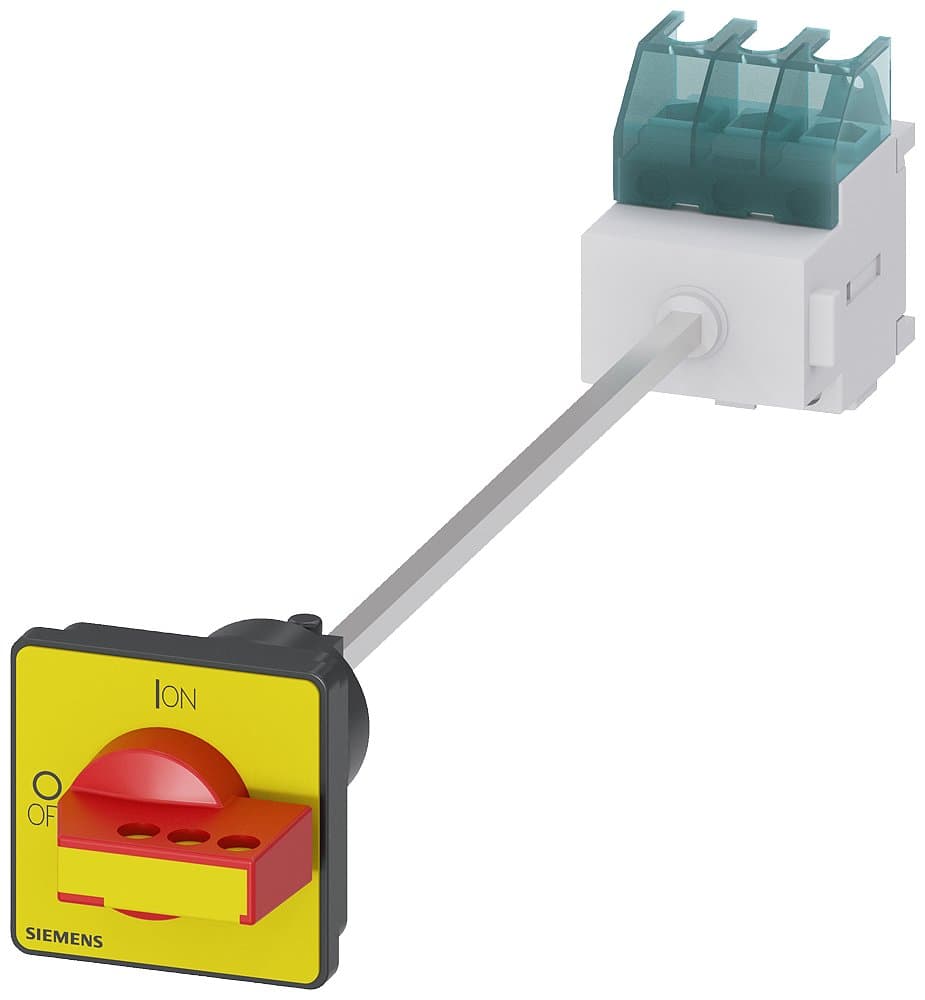

Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P, with removable door-coupled rotary operation mechanism, red/yellow handle, base-mounted installation, cabinet door with four-hole mounting, AC-23A/11.5KW, UL508 certified | Installation Type | Base-mounted installation, cabinet door with four-hole mounting |
Other | AC-23A/11.5KW, UL508 certified | Number of Poles | 3P |
In(A) | 32 | Specification | 3LD22【32A】 |
Switch Type | With removable door-coupled rotary operation mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2217-0TK13 |
Specifications may be subject to change without notice
