Product Model
3LD2230-0TK13
Selling Points
- 1Protects users from electric shock with permanent switch-on and switch-off under load.
- 2Handles up to 32 A of uninterrupted current, suitable for various industrial applications.
- 3Available for floor mounting, standard mounting rail, and front mounting, ensuring flexibility in installation.
- 4Meets IP65 protection standards, ensuring robust performance in harsh environments.
- 5Certified according to UL 508 and UL 60947-4-1, ensuring compliance with industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

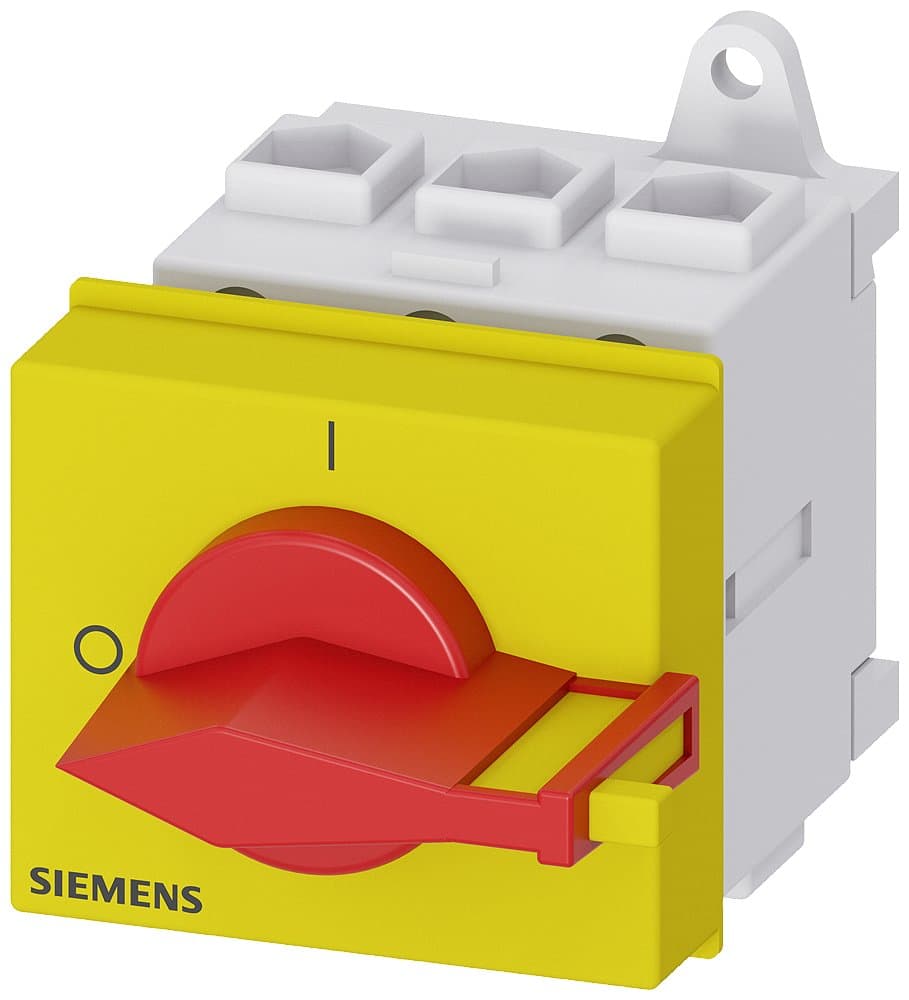

Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P, with shield plate and selector switch, red/yellow handle, distribution panel mounting, AC-23A/11.5KW | Mounting Type: | Distribution Panel Mounting |
Other: | AC-23A/11.5KW | Poles: | 3P |
In(A): | 32 | Specification: | 3LD22【32A】 |
Switch Type: | With Shield Plate and Selector Switch, Red/Yellow Handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2230-0TK13 |
Specifications may be subject to change without notice
