Product Model
3LD2244-0TK53
Selling Points
- 1Safety-Oriented Design: Compliant with EN 60204 machinery directive for enhanced safety.
- 2High Current Capacity: Handles up to 32 A with a robust design.
- 3Emergency Switching: Quickly disconnects power in emergency situations.
- 4Floor Mounting: Easy installation with door coupling for secure operation.
- 5Rotary Operating Mechanism: Central handle with 22.5 mm mounting for smooth operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V) | 690 | Insulation Voltage(V) | 690 |

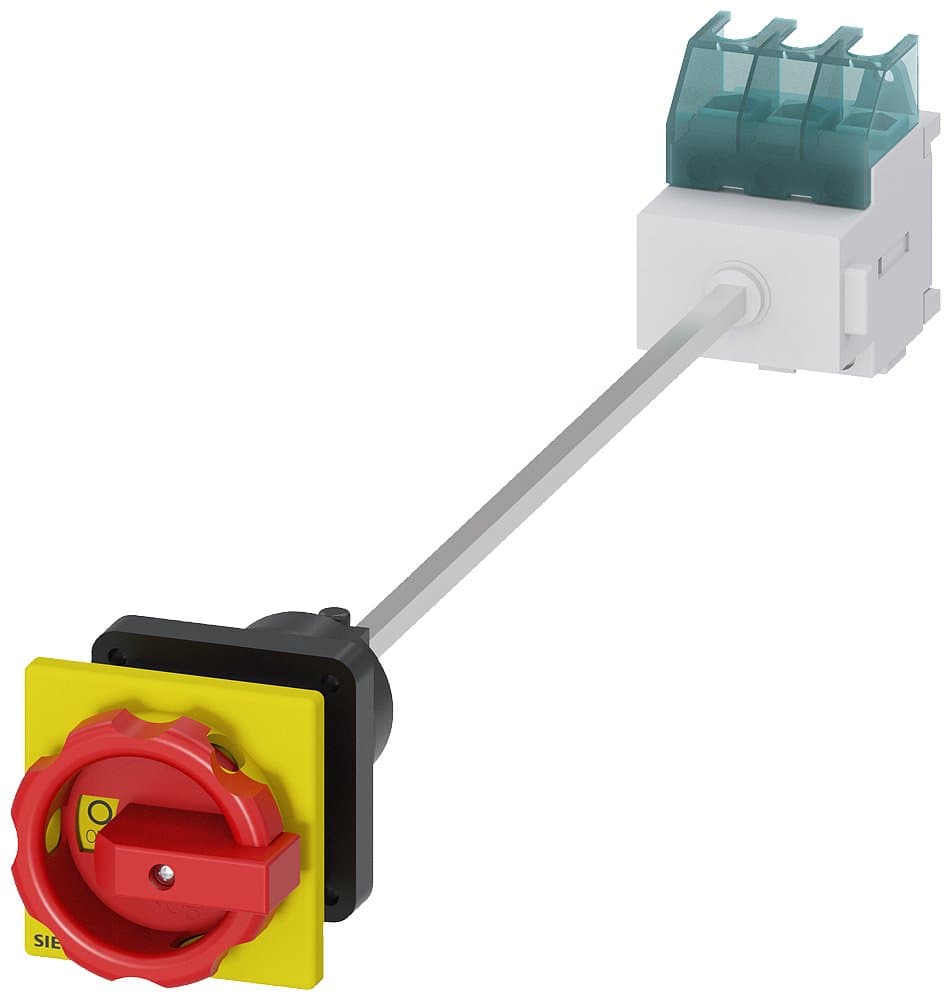

Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, center hole in cabinet door, AC-23A/11.5KW | Installation Type | Base-mounted installation, center hole in cabinet door |
Other | AC-23A/11.5KW | Poles | 3P |
In(A) | 32 | Specification | 3LD22【32A】 |
Switch Type | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2244-0TK53 |
Specifications may be subject to change without notice
