Product Model
3LD2264-1GP53
Selling Points
- 1High current rating of 32 A for reliable operation.
- 2Molded plastic enclosure for durability and protection.
- 33-pole design with 1NC-1NO contact for efficient switching.
- 4Suitable for 690 VAC applications, ensuring safe operation.
- 5Free delivery available from authorized Siemens retailers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

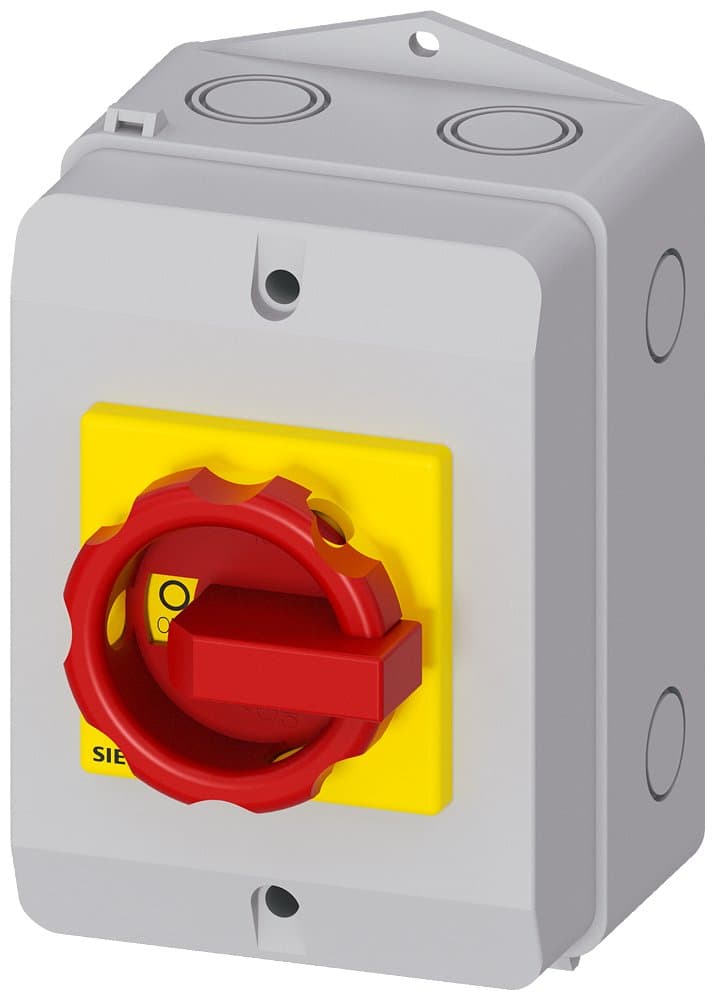

Description | Isolator Switch, Main Control and Emergency Stop Switch, 3LD2, 32A, 3P, Metric Thread Sealed Connector, Red/Yellow Handle, Plastic Housing Installation, AC-23A/11.5KW, 1NO+1NC | Mounting Type | Plastic Housing Installation |
Terminal Type | N | Other | AC-23A/11.5KW, 1NO+1NC |
Poles | 3P | In(A) | 32 |
Specification | 3LD22【32A】 | Switch Type | Metric Thread Sealed Connector, Red/Yellow Handle |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3LD2264-1GP53 |
Specifications may be subject to change without notice
