Product Model

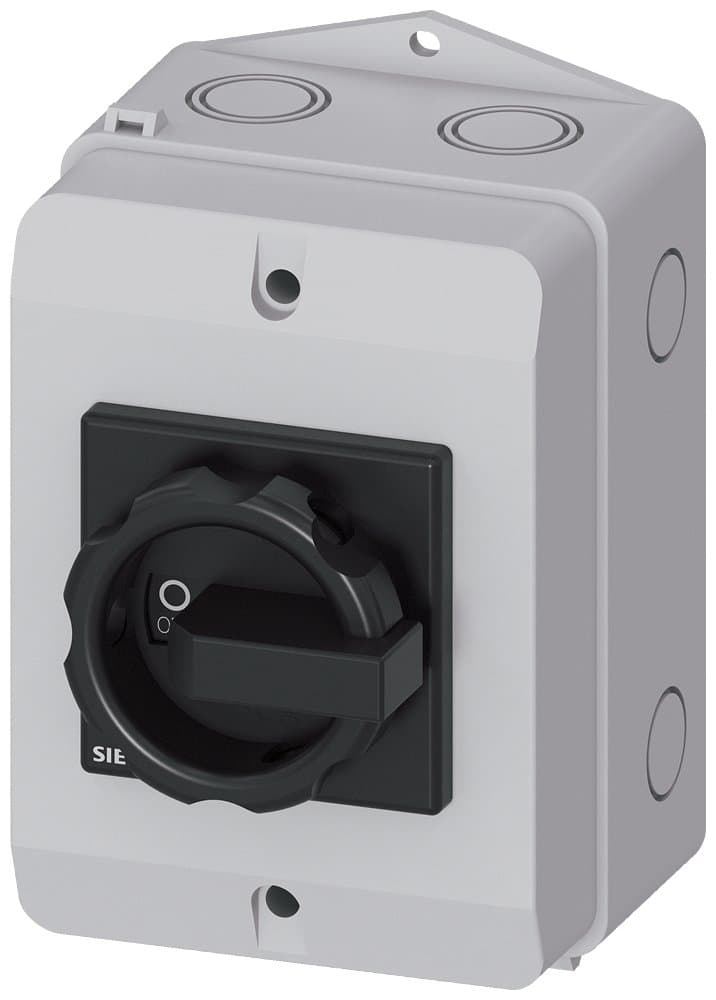

3LD2264-1TC51
Selling Points
- 1High Power Handling: 11.5 kW operating power at AC-23 A at 400 V.
- 2Durable Design: Molded-plastic encapsulation for metric cable gland.
- 3Versatile Application: Suitable for various industrial settings with stable positions.
- 4Reliable Performance: Operating temperature range of -25°C to 55°C.
- 5Compact Dimensions: Face dimensions of 100x140 mm for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P+N, metric threaded sealed connector, black handle, plastic housing installation, AC-23A/11.5KW | Installation Type | Plastic Housing Installation |
Terminal Type | PE | Other | AC-23A/11.5KW |
Number of Poles | 3P+N | In(A) | 32 |
Specification | 3LD22【32A】 | Switch Type | Metric threaded sealed connector, black handle |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3LD2264-1TC51 |
Specifications may be subject to change without notice
