Product Model
3LD2330-0TK13
Selling Points
- 1Emergency Switching-Off Capability: Quickly disconnect power in emergency situations.
- 2High Current Rating: Handles up to 160A for robust electrical systems.
- 33-Pole Design: Ensures safe and efficient switching operations.
- 4Operational Performance: Supports 75 kW at AC-23 A and 400 V.
- 5Durable Construction: Built to withstand demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

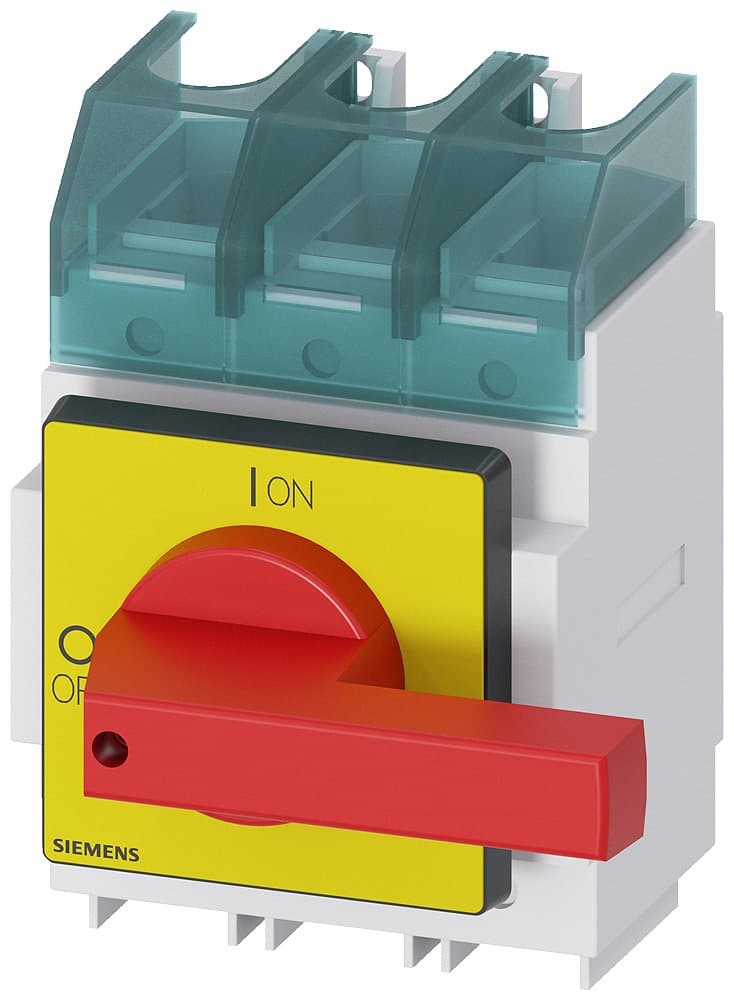

Description | Isolator switch, main control and emergency stop switch, 3LD2, 160A, 3P, with shield plate and selector switch, red/yellow handle, distribution panel mounting, AC-23A/75KW | Mounting Type: | Distribution Panel Mounting |
Other: | AC-23A/75KW | Poles: | 3P |
In(A): | 160 | Specification: | 3LD23【160A】 |
Switch Type: | With Shield Plate and Selector Switch, Red/Yellow Handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2330-0TK13 |
Specifications may be subject to change without notice
