Product Model

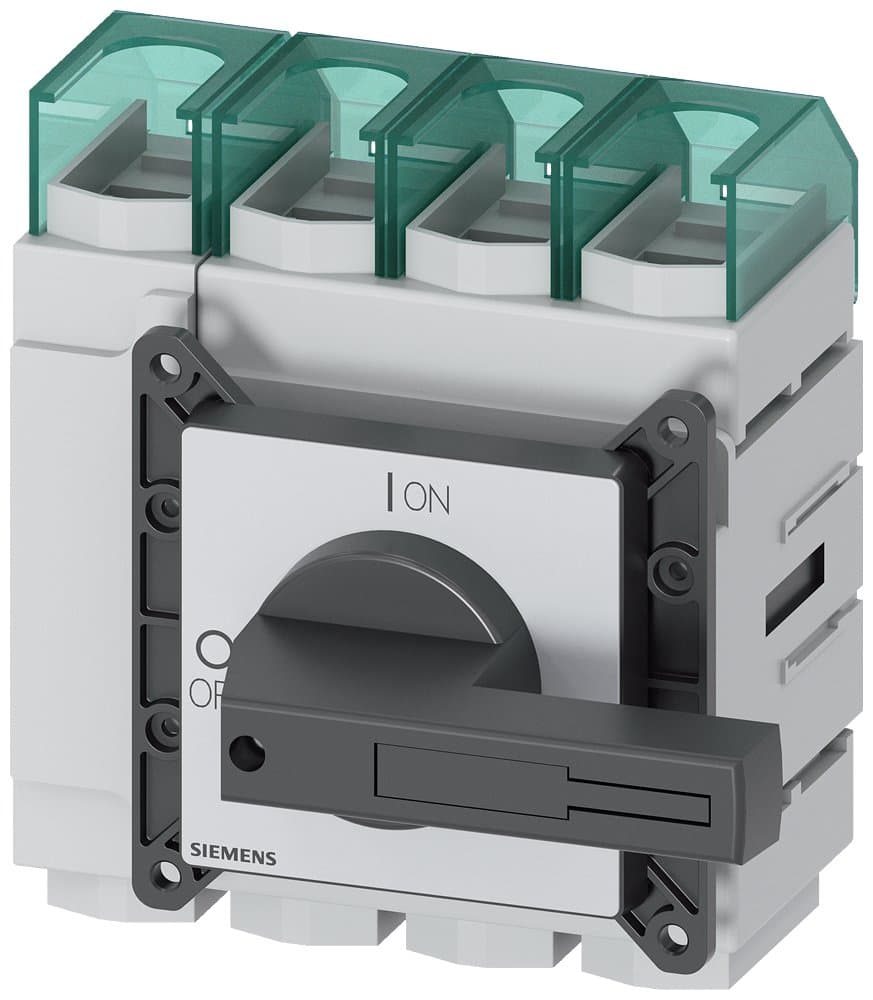

3LD2405-1TL11
Selling Points
- 1High-power control with 250A current rating.
- 24-pole design for robust electrical management.
- 3Knob-operated mechanism for easy operation.
- 4Front-mounted design for convenient access.
- 5Black handle for durability and aesthetics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 250A, 3P+N, with rotary operation mechanism, black handle, flush mounted, four-hole installation on cabinet door, AC-3/110kW; AC-23A/132kW | Installation Type | Flush mounting on cabinet door with four-hole installation |
Other | AC-3/110kW; AC-23A/132kW | Number of Poles | 3P+N |
In(A) | 250 | Specification | 3LD24【250A】 |
Switch Type | With rotary operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2405-1TL11 |
Specifications may be subject to change without notice
