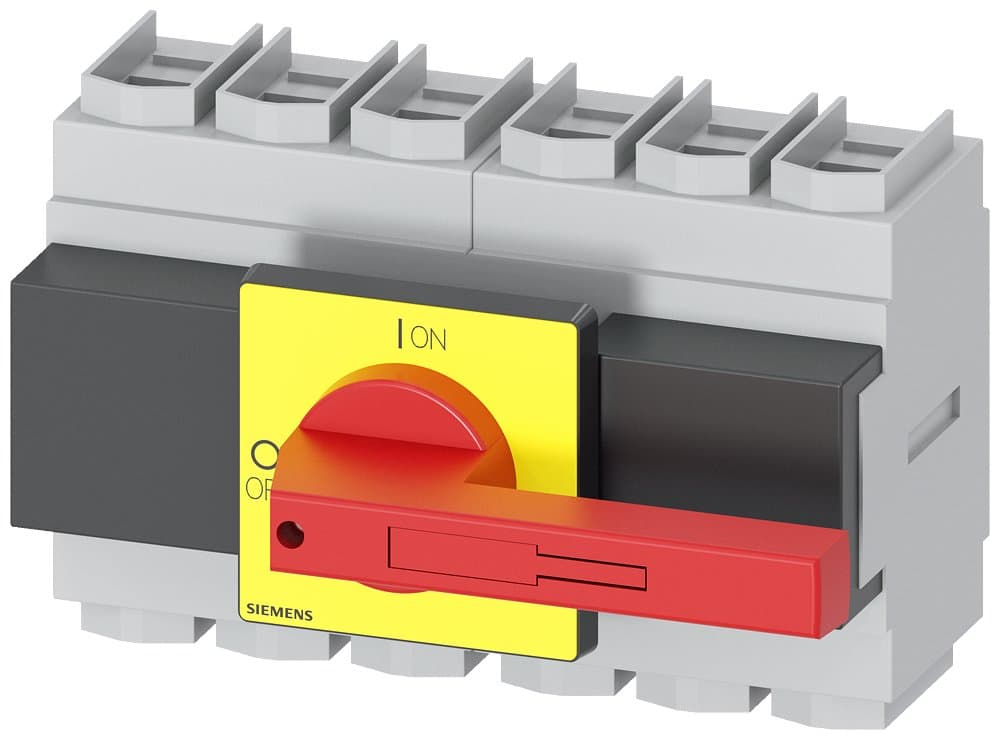

Product Model
3LD2405-3VK13
Selling Points
- 1High Power Handling: Handles up to 250 A current and 132 kW power at AC-23 A 400 V.
- 2Emergency-Stop Capability: Features an EMERGENCY-STOP switch for immediate shutdown.
- 3Durable Design: Built with a front-mounted, knob-operated mechanism and rated for 100,000 operating cycles.
- 4IP65 Protection: Offers maximum achievable IP65 degree of protection against dust and water.
- 5Versatile Mounting: Compatible with 4-hole front mounting and suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 250A, 6P, with rotary operation mechanism, red/yellow handle, flush mount, four-hole mounting on cabinet door, AC-3/110KW; AC-23A/132KW | Installation Type | Flush mount cabinet door with four-hole mounting |
Other | AC-3/110KW; AC-23A/132KW | Poles | 6P |
In(A) | 250 | Specification | 3LD24【250A】 |
Switch Type | With rotary operation mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2405-3VK13 |
Specifications may be subject to change without notice
