Product Model
3LD2418-0TK11
Selling Points
- 1High Current Rating: 250A for reliable operation in demanding environments.
- 2Robust Construction: Floor mounting with door coupling for secure and stable installation.
- 3Operational Power: 132 kW at AC-23 A at 400 V for efficient power handling.
- 4IP65 Rating: Front IP65 protection ensures durability in harsh conditions.
- 5Versatile Mounting Options: Compatible with DIN rail mounting and panel mounting for flexibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

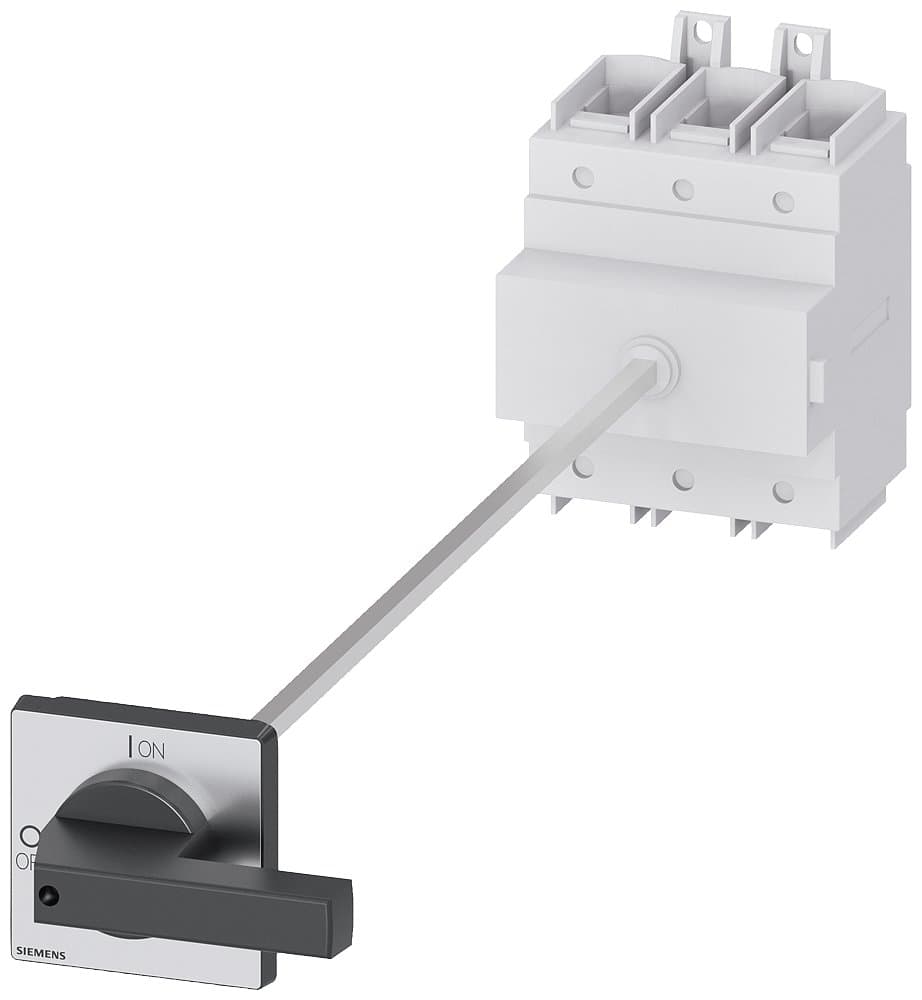

Description | Isolator switch, main and emergency stop switch, 3LD2, 250A, 3P, with door-coupled rotary operation mechanism, black handle, base-mounted installation, four-hole mounting on cabinet door, AC-23A/132KW | Installation Type | Base-mounted installation, four-hole mounting on cabinet door |
Other | AC-23A/132KW | Number of Poles | 3P |
In(A) | 250 | Specification | 3LD24【250A】 |
Switch Type | With door-coupled rotary operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2418-0TK11 |
Specifications may be subject to change without notice
