Product Model

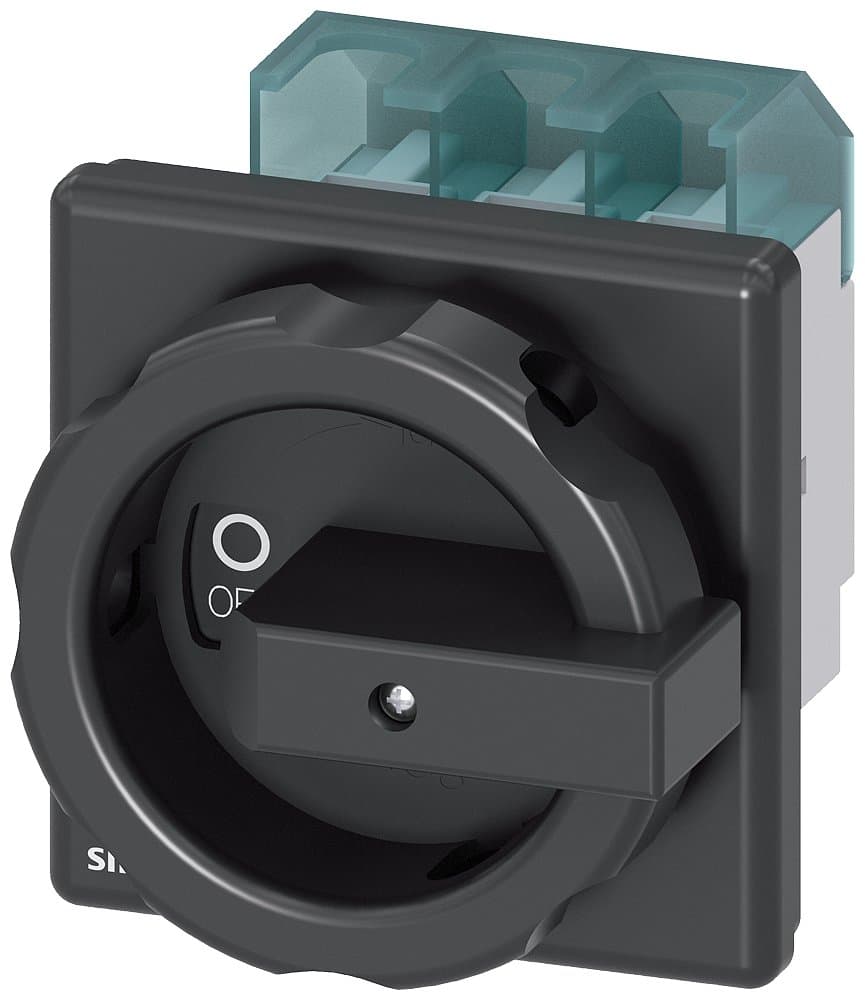

3LD2504-0TK51
Selling Points
- 1High-power main switch with 63 A rated current.
- 23-pole configuration for reliable operation.
- 3Front-mounted rotary operating mechanism for easy control.
- 4Black color with 4-hole mounting of the handle.
- 5Suitable for distribution board installations and emergency stop installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
Description | Isolator switch, main and emergency stop switch, 3LD2, 63A, 3P, with rotary operating mechanism, black handle, flush-mounted, four-hole mounting on cabinet door, AC-3/18.5KW; AC-23A/22KW | Installation Type: | Flush-mounted cabinet door with four-hole mounting |
Other: | AC-3/18.5KW; AC-23A/22KW | Number of Poles: | 3P |
In(A): | 63 | Specification: | 3LD25【63A】 |
Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2504-0TK51 |
Specifications may be subject to change without notice
