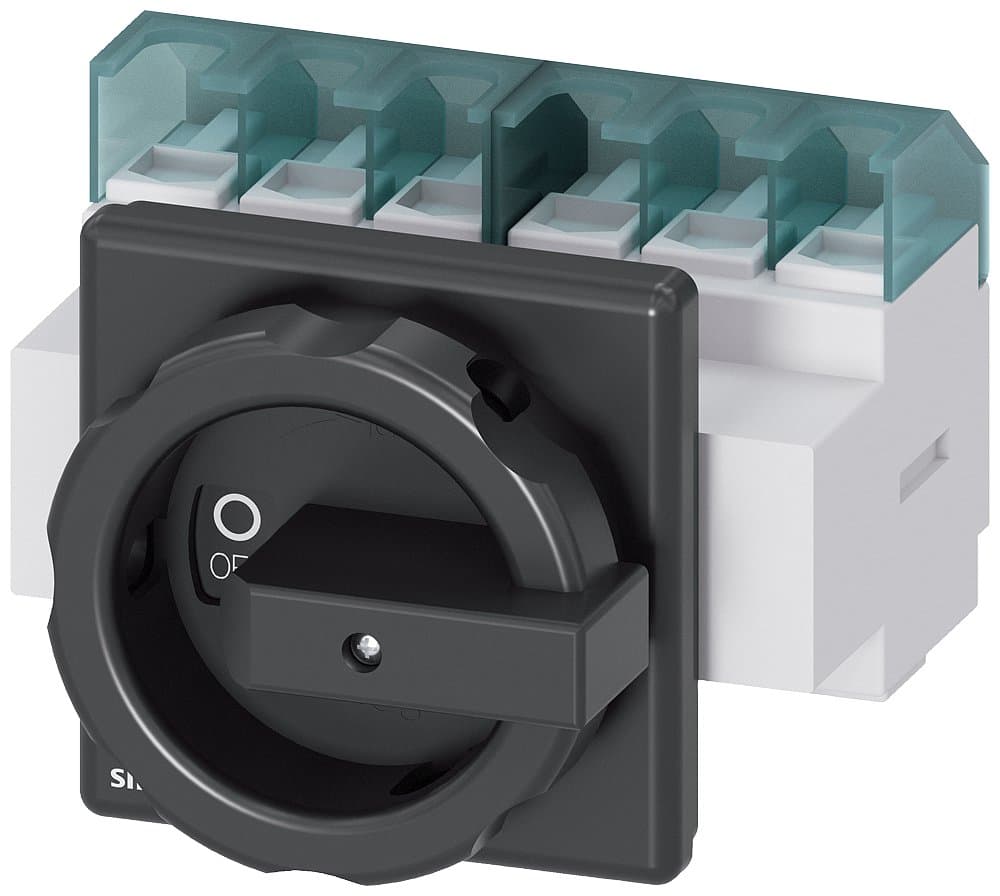

Product Model
3LD2504-3VK51
Selling Points
- 122kW operating power at AC-23A, 400V.
- 2Front-mounted, rotary operating mechanism with black handle.
- 3Ensures reliable operation in harsh environments.
- 44-hole front mounting for easy installation.
- 5Pad lockable in OFF position for enhanced safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 63A, 6P, With Rotary Operating Mechanism, Black Handle, Flush Mounted, Four-Hole Fixation on Cabinet Door, AC-3/18.5KW; AC-23A/22KW | Installation Type: | Flush Mounting on Cabinet Door with Four-Hole Fixation |
Other: | AC-3/18.5KW; AC-23A/22KW | Number of Poles: | 6P |
In(A): | 63 | Specification: | 3LD25【63A】 |
Switch Type: | With Rotary Operating Mechanism, Black Handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2504-3VK51 |
Specifications may be subject to change without notice
