Product Model
3LD2504-3VK53
Selling Points
- 1High-Voltage Capability: Designed for 690V applications, ensuring reliable operation in demanding electrical environments.
- 2Emergency Switching: Provides immediate shutdown in emergency situations, enhancing safety and reducing downtime.
- 3Front-Mounted Rotary Operation: Easy to use with its front-mounted rotary operating mechanism, simplifying maintenance and operation.
- 4High Current Rating: Handles up to 63A of current, making it suitable for various industrial applications.
- 5Durable Construction: Built with high-quality materials to withstand harsh conditions and ensure long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

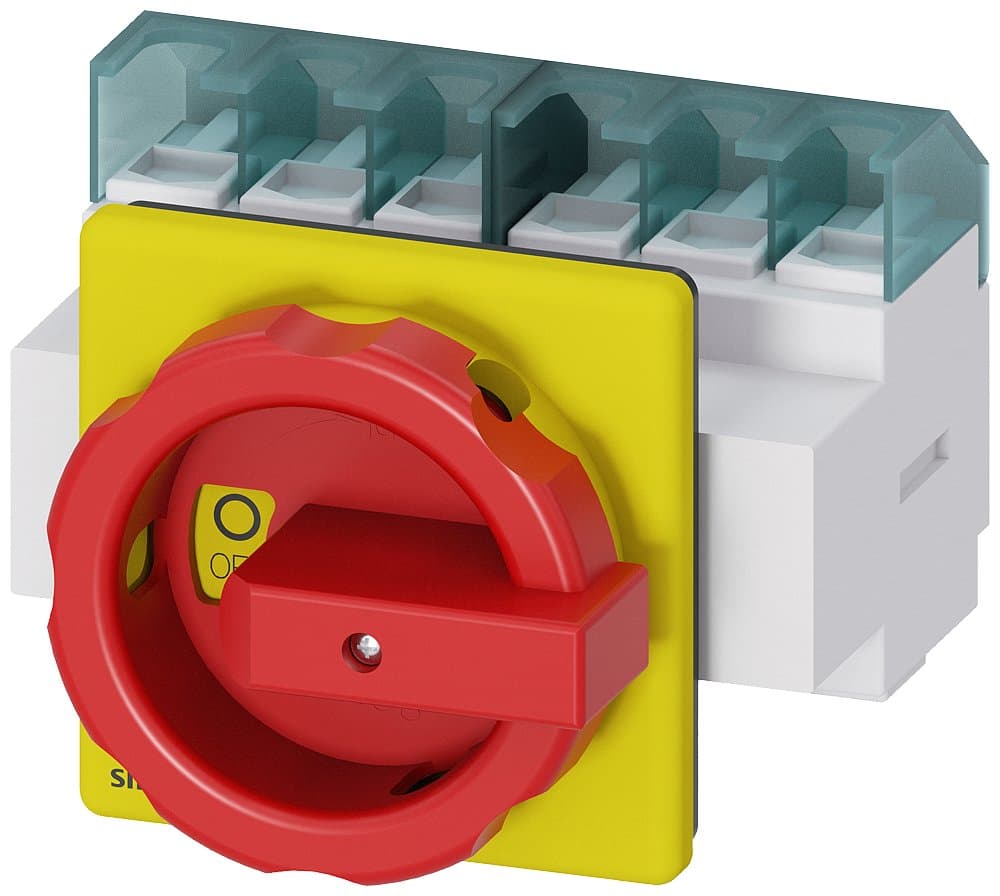

Description | Isolator switch, main control and emergency stop switch, 3LD2, 63A, 6P, with rotary operating mechanism, red/yellow handle, flush mount, four-hole mounting on cabinet door, AC-3/18.5KW; AC-23A/22KW | Installation Type | Flush mount cabinet door with four-hole mounting |
Other | AC-3/18.5KW; AC-23A/22KW | Number of Poles | 6P |
In(A) | 63 | Specification | 3LD25【63A】 |
Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2504-3VK53 |
Specifications may be subject to change without notice
