Product Model
3LD2514-0TK51
Selling Points
- 1Built to last with robust construction.
- 2Easy installation and secure operation.
- 3Handles high amperage requirements efficiently.
- 4Supports significant electrical loads.
- 5106 mm H x 90 mm W x 468.5 mm D for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

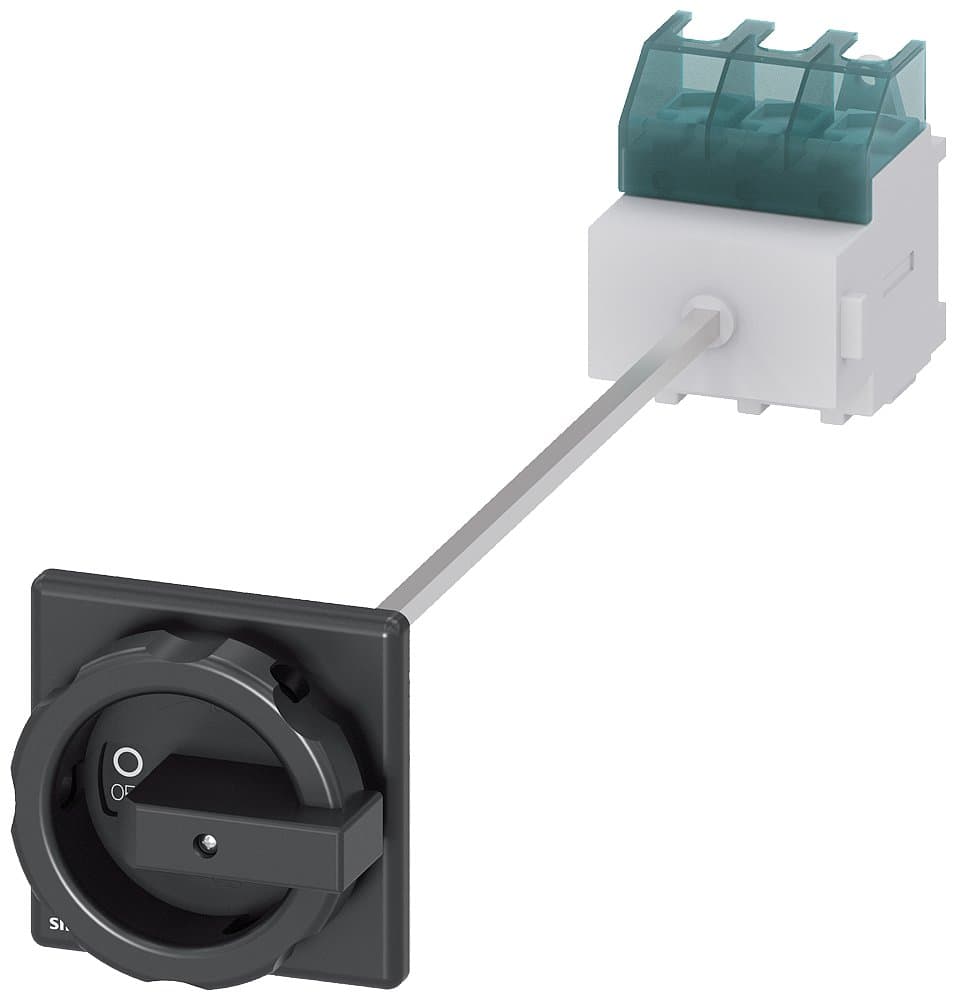

Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 63A, 3P, Rotary Operation Mechanism with Door Coupling, Black Handle, Base-Mounted Installation, Cabinet Door with Four-Hole Fixation, AC-23A/22KW | Installation Type: | Base-Mounted Installation, Cabinet Door with Four-Hole Fixation |
Other: | AC-23A/22KW | Number of Poles: | 3P |
In(A): | 63 | Specification: | 3LD25【63A】 |
Switch Type: | Rotary Operation Mechanism with Door Coupling, Black Handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2514-0TK51 |
Specifications may be subject to change without notice
