Product Model
3LD2517-1TL13
Selling Points
- 163A IU for reliable operation in demanding electrical systems.
- 2Defeatable knob-operated mechanism for quick emergency shutdown.
- 3Designed for floor mounting with door coupling for easy installation.
- 4Red/yellow color control element for clear visibility and safety.
- 54-hole mounting of the handle for secure and versatile mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

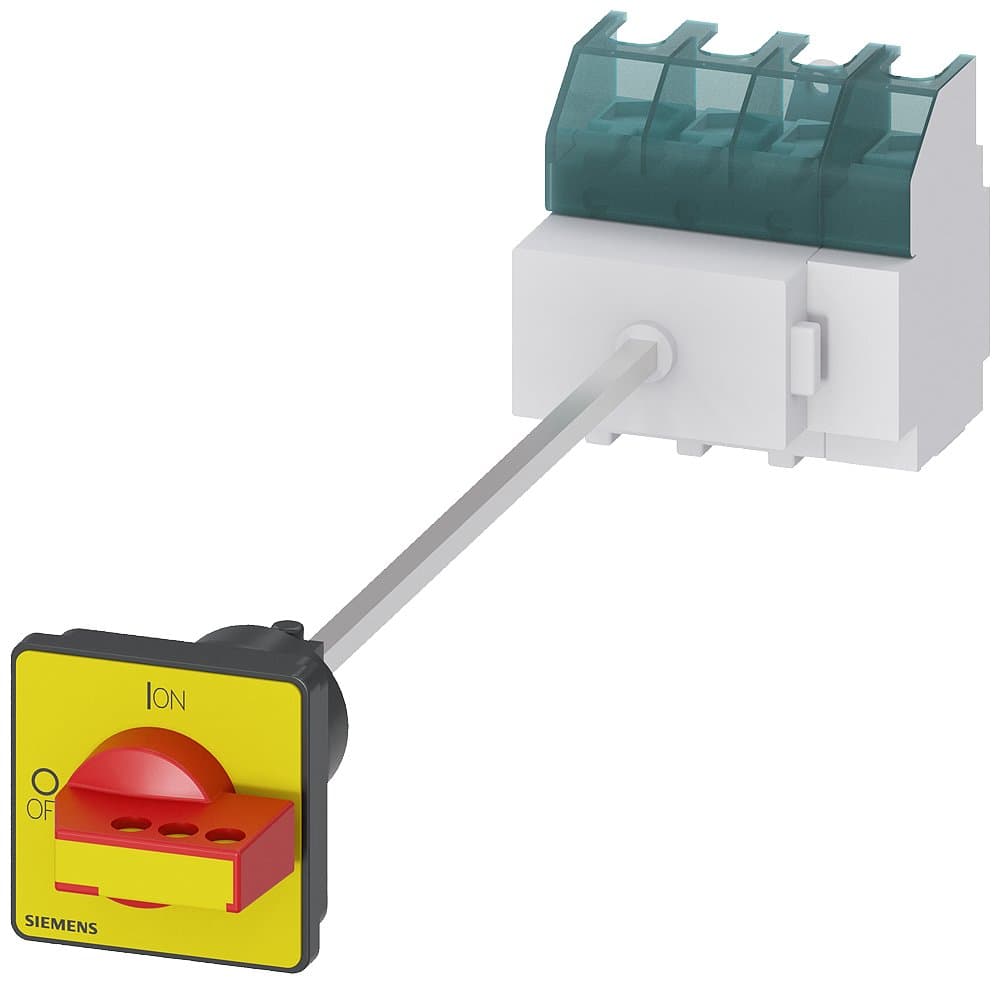

Description | Isolator switch, main control and emergency stop switch, 3LD2, 63A, 3P+N, with removable door-coupled rotary operation mechanism, red/yellow handle, base-mounted installation, cabinet door with four-hole mounting, AC-23A/22KW, UL508 certified | Installation Type | Base-mounted installation, cabinet door with four-hole mounting |
Other | AC-23A/22KW, UL508 certified | Number of Poles | 3P+N |
In(A) | 63 | Specification | 3LD25【63A】 |
Switch Type | With removable door-coupled rotary operation mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2517-1TL13 |
Specifications may be subject to change without notice
