Product Model

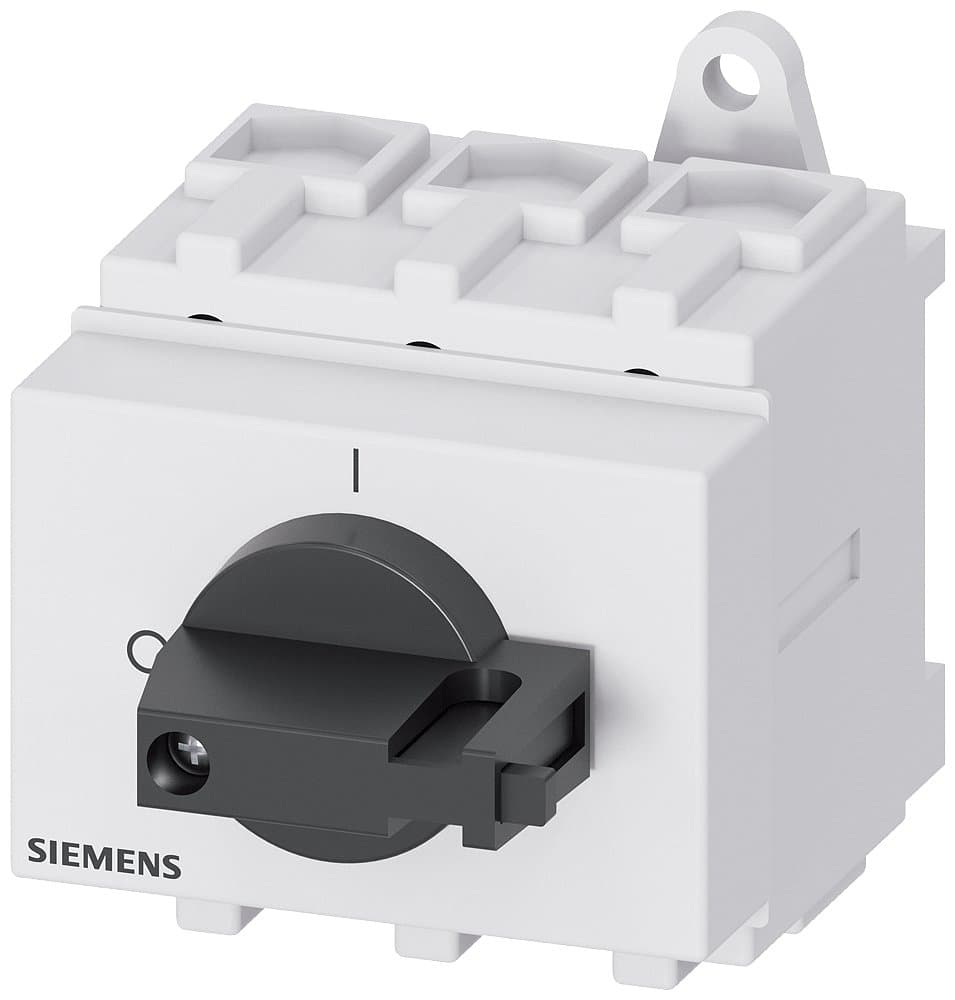

3LD2530-0TK11
Selling Points
- 1High-power main switch for distribution boards.
- 263A Iu rating for reliable operation.
- 322 kW operating power at AC-23 A at 400 V.
- 4SENTRON brand for trusted electrical solutions.
- 5Ideal for installations requiring high current capacity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
Description | Isolator Switch, Main Control and Emergency Stop Switch, 3LD2, 63A, 3P, With Shield Plate and Selector Switch, Black Handle, Distribution Panel Mounting, AC-23A/22KW | Mounting Type: | Distribution Panel Mounting |
Other: | AC-23A/22KW | Number of Poles: | 3P |
In(A): | 63 | Specification: | 3LD25【63A】 |
Switch Type: | With Shield Plate and Selector Switch, Black Handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2530-0TK11 |
Specifications may be subject to change without notice
