Product Model
3LD2545-0TK51
Selling Points
- 1High Current Rating: 63A current rating for robust performance.
- 2Versatile Mounting: Floor mounting with door coupling for easy installation.
- 3Durable Design: IP65 rating from the front for protection against dust and water.
- 4Efficient Operation: Operating power of 22 kW at AC-23 A at 400 V.
- 5Reliable Mechanism: Rotary operating mechanism for smooth and precise control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

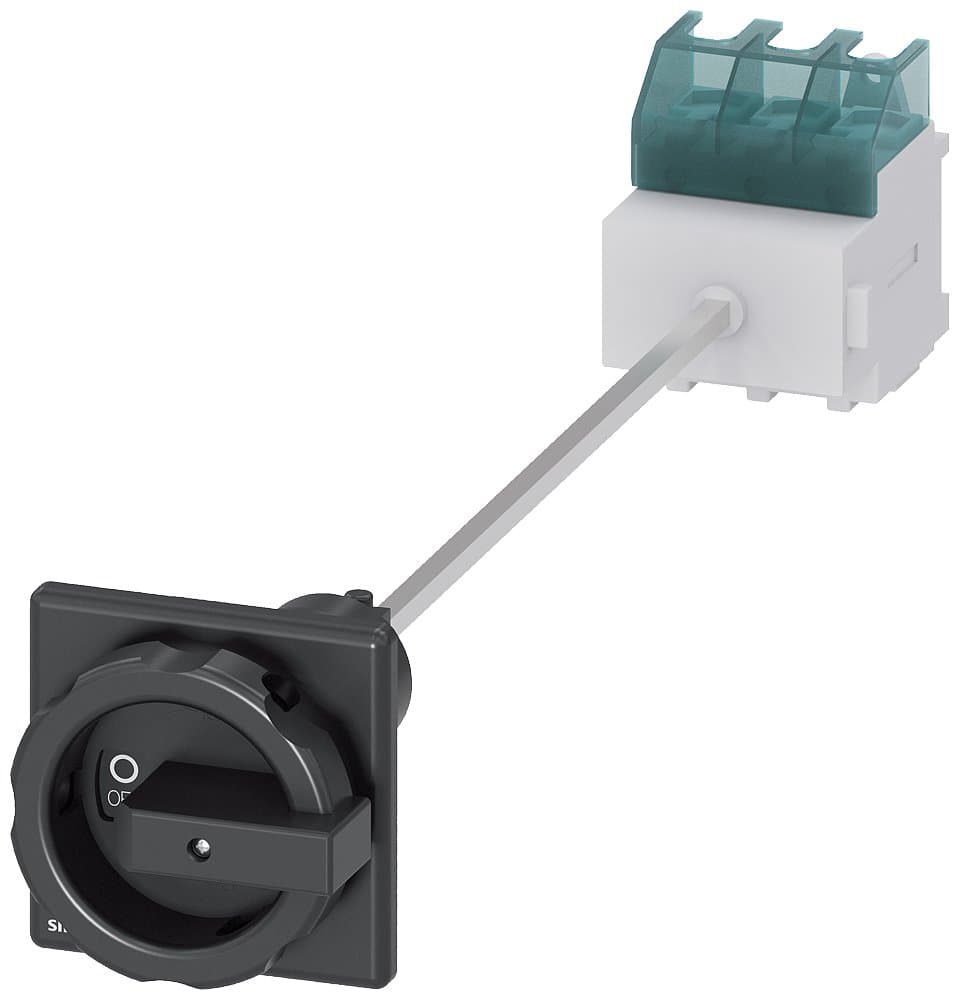

Description | Isolator switch, main and emergency stop switch, 3LD2, 63A, 3P, rotary operating mechanism with door coupling, black handle, base-mounted installation, center hole in cabinet door mounting, AC-23A/22KW | Installation Type: | Base-mounted installation, center hole in cabinet door mounting |
Other: | AC-23A/22KW | Number of Poles: | 3P |
In(A): | 63 | Specification: | 3LD25【63A】 |
Switch Type: | Rotary operating mechanism with door coupling, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2545-0TK51 |
Specifications may be subject to change without notice
