Product Model
3LD2545-0TK53
Selling Points
- 1Emergency Switching-Off Capability: Quickly disconnect power in emergency situations.
- 23-Pole Configuration: Suitable for various electrical applications requiring a three-pole switch.
- 3High Current Rating: Handles up to 63A of current, ensuring reliable operation.
- 4Floor Mounting with Door: Easy installation and secure access with a floor-mounted design and door.
- 5Indoor Applications: Designed for indoor use, perfect for maintenance and repair work on induction motors and other loads.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

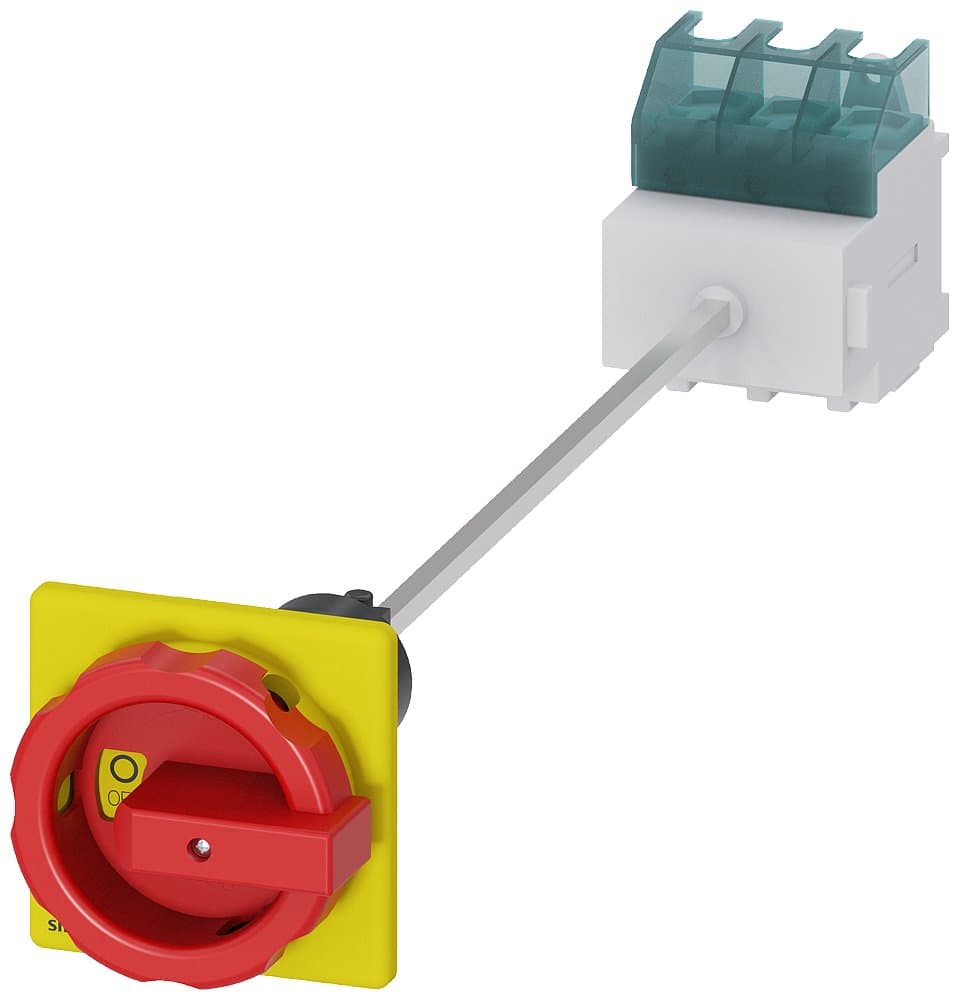

Description | Isolator switch, main control and emergency stop switch, 3LD2, 63A, 3P, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, center hole in cabinet door mounting, AC-23A/22KW | Installation Type | Base-mounted installation, center hole in cabinet door mounting |
Other | AC-23A/22KW | Poles | 3P |
In(A) | 63 | Specification | 3LD25【63A】 |
Switch Type | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2545-0TK53 |
Specifications may be subject to change without notice
