Product Model

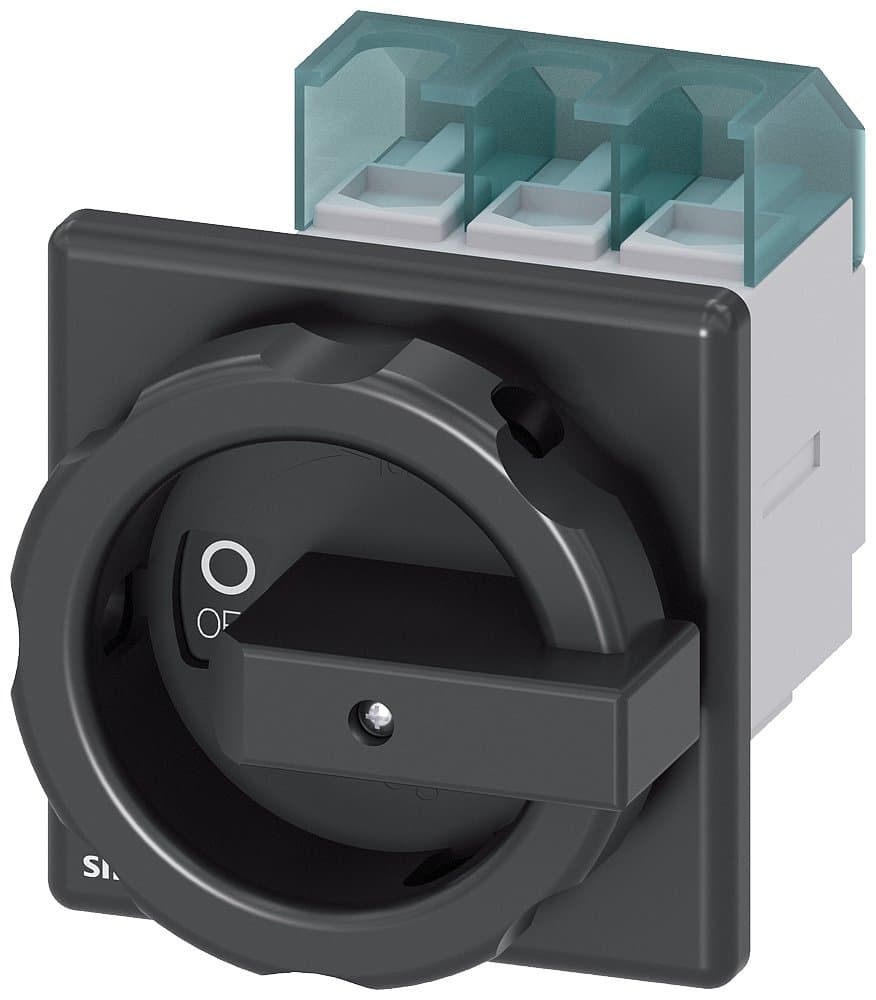

3LD2555-0TK51
Selling Points
- 1The Siemens 3LD2555-0TK51 switch disconnector ensures safe and efficient power distribution with its robust design.
- 2Designed for three-pole operation, this switch disconnector supports complex electrical systems.
- 3With a rated current of 63 A, it can handle high electrical loads effectively.
- 4The front-mounted rotary mechanism provides easy operation and enhances user safety.
- 5Meets IEC 60947-3 and UL 508 standards for reliability and safety in electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V): | 690 | Insulation Voltage (V): | 690 |
Description | Isolator switch, main and emergency stop switch, 3LD2, 63A, 3P, with rotary operating mechanism, black handle, flush-mounted, cabinet door central hole installation, AC-3/18.5KW; AC-23A/22KW | Installation Type | Flush-mounted cabinet door central hole installation |
Other | AC-3/18.5KW; AC-23A/22KW | Number of Poles | 3P |
In(A): | 63 | Specification | 3LD25【63A】 |
Switch Type | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2555-0TK51 |
Specifications may be subject to change without notice
