Product Model

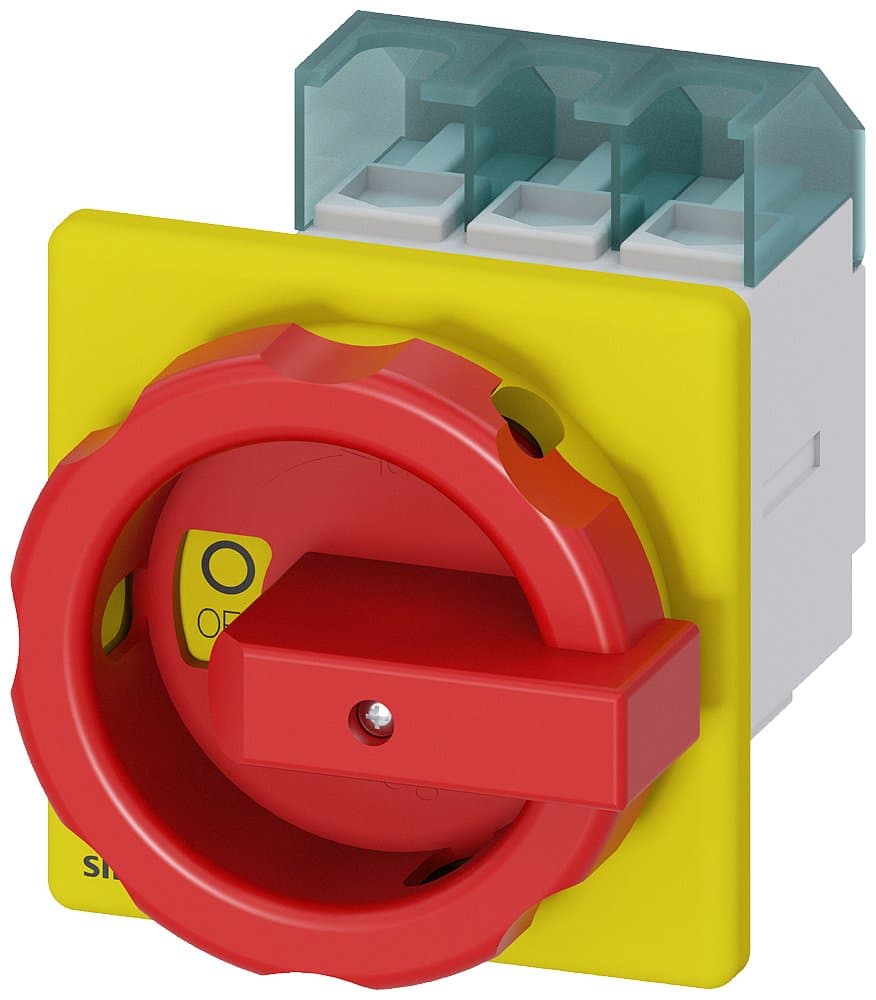

3LD2555-0TK53
Selling Points
- 1Emergency Switching-Off Capability: Quickly disconnect power in emergency situations.
- 2High Current Rating: Handles up to 63 A of current.
- 3Front-Mounted Design: Convenient and accessible rotary operating mechanism.
- 4Compact Size: Central mounting with a handle diameter of 22.5 mm.
- 5Durable Construction: Built for long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 63A, 3P, with rotary operating mechanism, red/yellow handle, mounting in the center hole of the cabinet door, AC-3/18.5KW; AC-23A/22KW | Installation Type | Mounting in the center hole of the cabinet door |
Other | AC-3/18.5KW; AC-23A/22KW | Poles | 3P |
In(A) | 63 | Specification | 3LD25【63A】 |
Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2555-0TK53 |
Specifications may be subject to change without notice
