Product Model

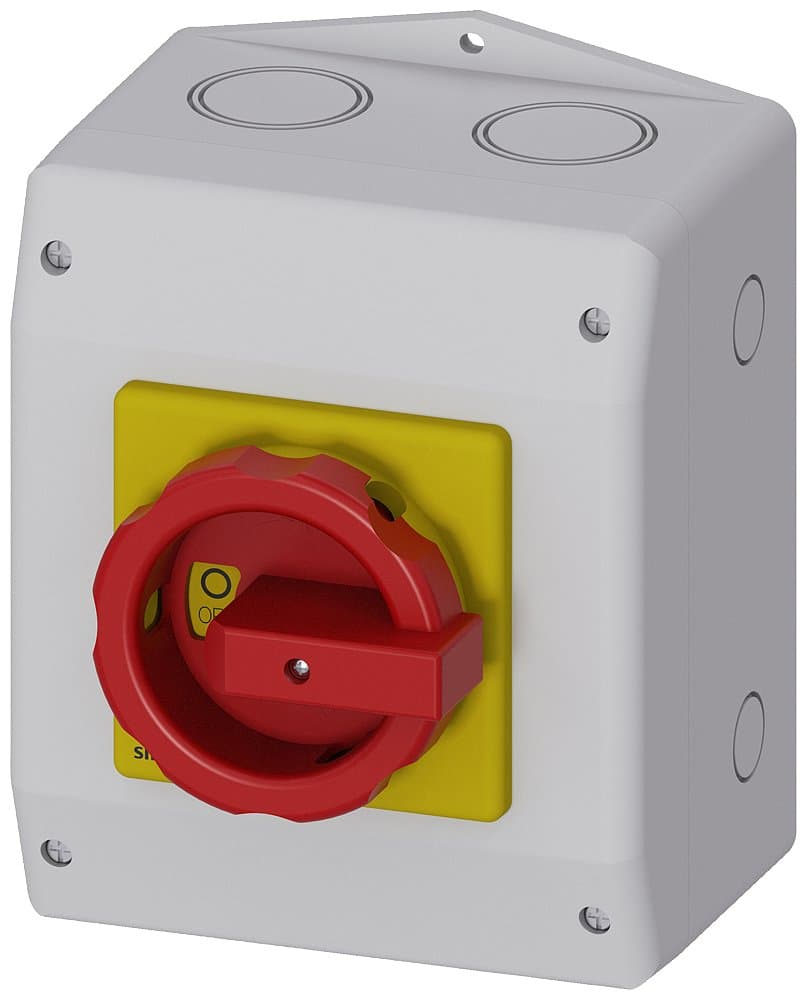

3LD2565-1GP53
Selling Points
- 1High-Voltage Capability: Designed for high-voltage applications with 63 A Iu and 22 kW operating power at AC-23 A 400 V.
- 2Emergency Switching-Off: Features an emergency switching-off mechanism for quick and safe disconnection.
- 3Molded Plastic Encapsulation: Encapsulated in molded plastic for durability and protection against environmental factors.
- 4Rotary Operating Mechanism: Equipped with a rotary operating mechanism for easy operation, featuring red/yellow colors.
- 5Compact Design: Suitable for various mounting options, including floor mounting and four-hole front mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 63A, 3P, metric threaded sealed connector, red/yellow handle, plastic housing installation, AC-23A/22KW, 1NO+1NC | Mounting Type | Plastic Housing Installation |
Terminal Type | N | Other | AC-23A/22KW, 1NO+1NC |
Poles | 3P | In(A) | 63 |
Specification | 3LD25【63A】 | Switch Type | Metric Threaded Sealed Connector, Red/Yellow Handle |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3LD2565-1GP53 |
Specifications may be subject to change without notice
