Product Model

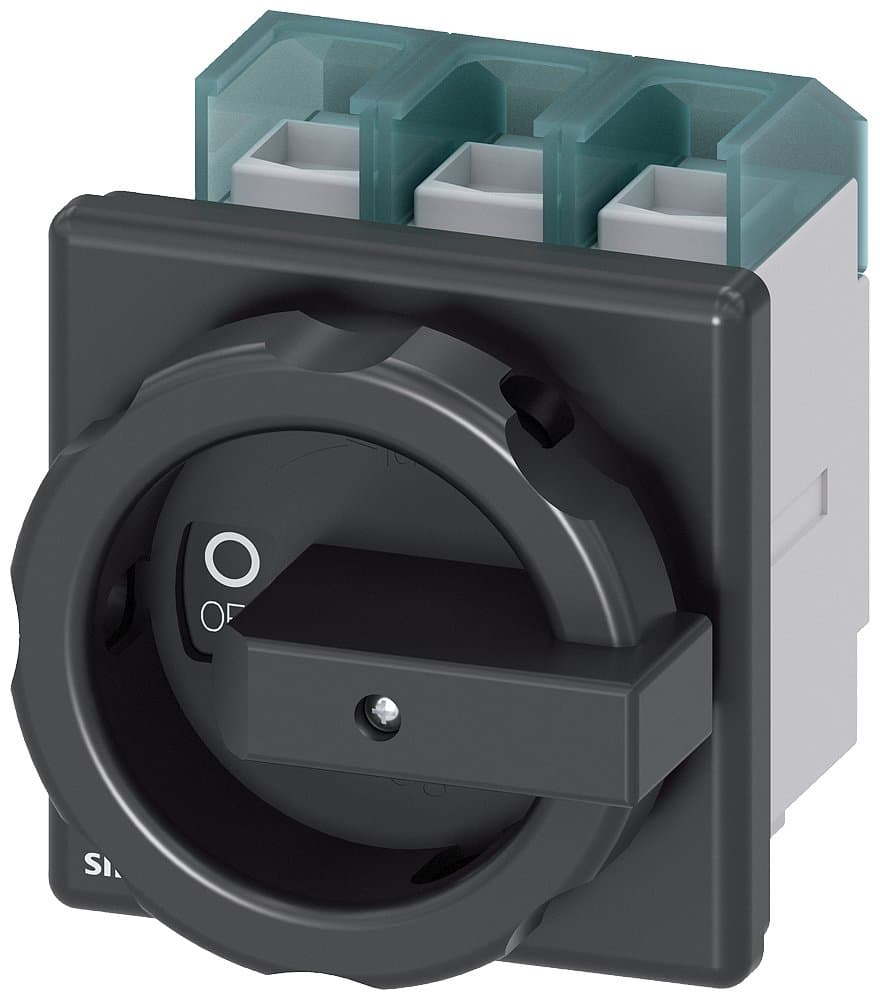

3LD2704-0TK51
Selling Points
- 1High switching capacity of 37 kW.
- 2Reliable operation in temperatures from -25°C to 55°C.
- 3Compact face dimensions of 90x90mm.
- 4Front-mounted rotary operating mechanism for easy use.
- 5Suitable for applications requiring 16-125A current.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
Description | Isolator switch, main and emergency stop switch, 3LD2, 100A, 3P, with rotary operating mechanism, black handle, flush mounted, four-hole installation on cabinet door, AC-3/30.5KW; AC-23A/37KW | Installation Type: | Flush mounted cabinet door with four-hole installation |
Other: | AC-3/30.5KW; AC-23A/37KW | Number of Poles: | 3P |
In(A): | 100 | Specification: | 3LD27【100A】 |
Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2704-0TK51 |
Specifications may be subject to change without notice
