Product Model
3LD2714-0TK51
Selling Points
- 1High-power main switch with 3-pole design.
- 2100A current rating for reliable operation.
- 337 kW operating power at AC-23A/400V.
- 4Floor mounting with door coupling for easy installation.
- 5SENTRON product line for trusted electrical protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

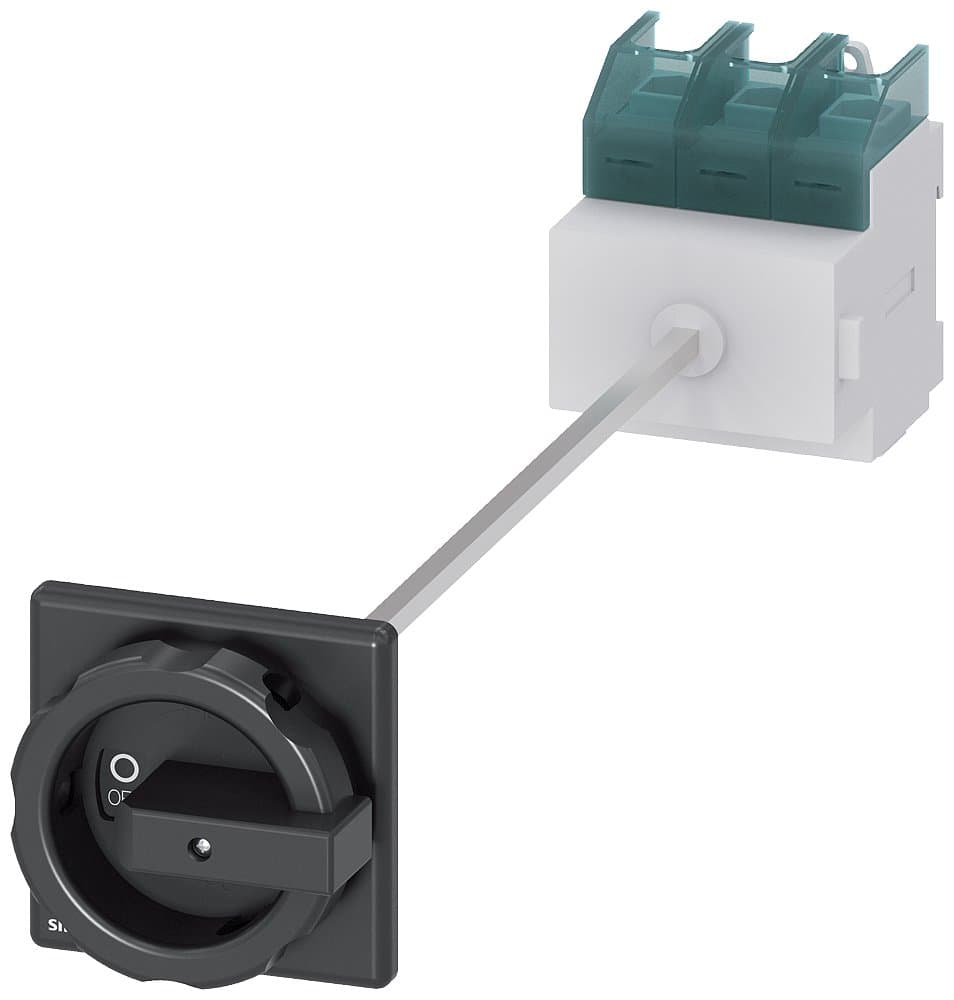

Description | Isolator switch, main and emergency stop switch, 3LD2, 100A, 3P, with door-coupled rotary operating mechanism, black handle, base-mounted installation, cabinet door four-hole mounting, AC-23A/37KW | Installation Type: | Base-mounted installation, cabinet door four-hole mounting |
Other: | AC-23A/37KW | Number of Poles: | 3P |
In(A): | 100 | Specification: | 3LD27【100A】 |
Switch Type: | With door-coupled rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2714-0TK51 |
Specifications may be subject to change without notice
