Product Model
3LD2814-0TK53
Selling Points
- 1Reliable Emergency Switching-Off Solution: Designed for emergency shutdowns in critical applications.
- 23-Pole Configuration: Suitable for various electrical systems requiring a three-pole switch.
- 3125A Amperage Rating: Handles high current loads with precision and safety.
- 445kW Operating Power: Capable of managing significant electrical power at AC-23A 400V.
- 5Floor Mounting with Door: Easy installation and access with a floor-mounted design featuring a door coupling.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

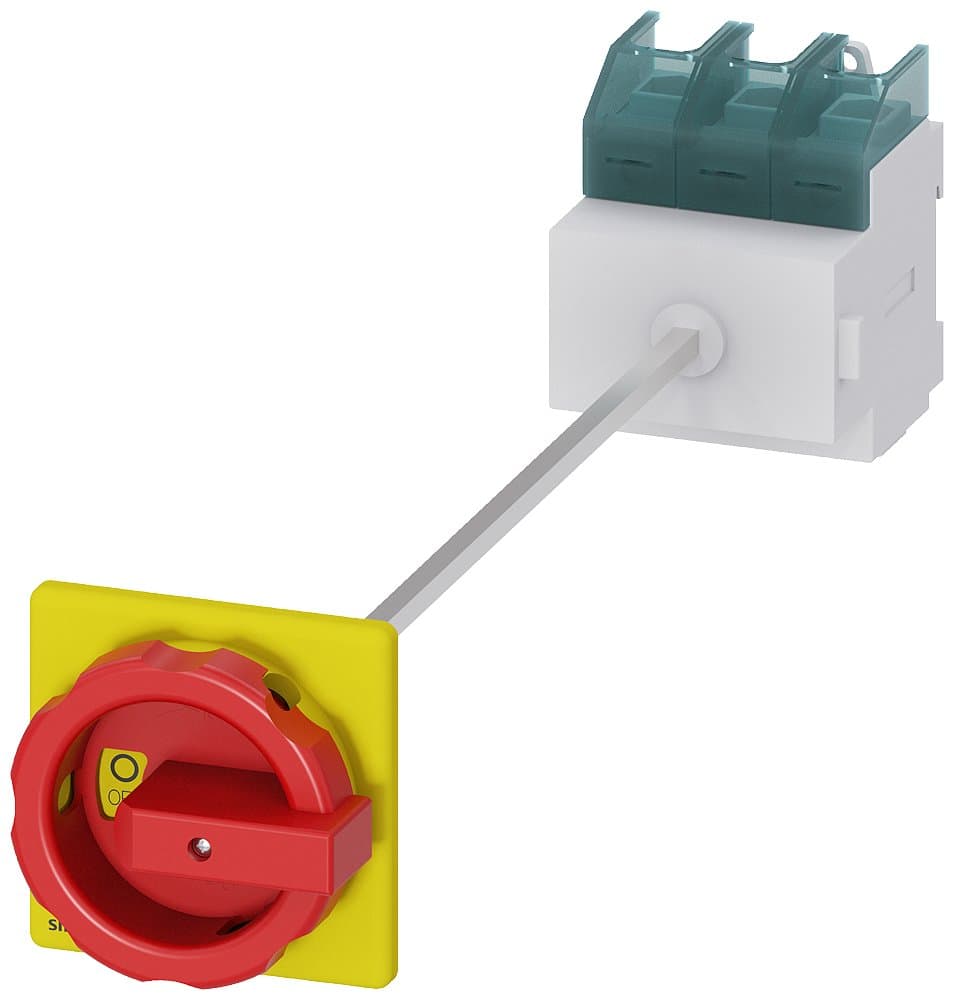

Description | Isolator switch, main control and emergency stop switch, 3LD2, 125A, 3P, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, four-hole mounting on cabinet door, AC-23A/45KW | Installation Type: | Base-mounted installation, four-hole mounting on cabinet door |
Other: | AC-23A/45KW | Poles: | 3P |
In(A): | 125 | Specification: | 3LD28【125A】 |
Switch Type: | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2814-0TK53 |
Specifications may be subject to change without notice
