Product Model

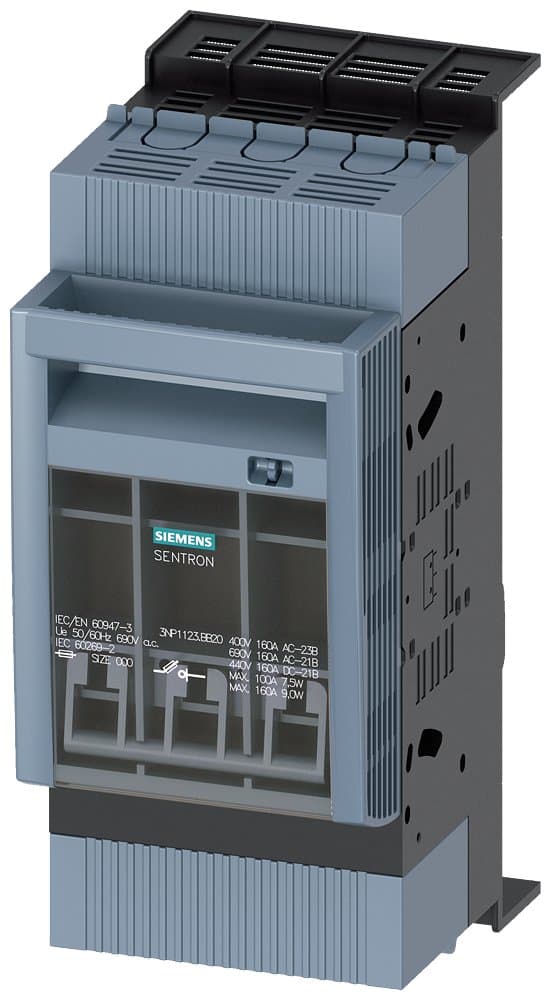

3NP1123-1BB20
Selling Points
- 1High-Performance Electrical Connection: Reliable and efficient electrical connections with a rated current of 160 A.
- 2Compact Design: NH000 size for compact installations in various electrical systems.
- 3Versatile Compatibility: Compatible with 8US busbar systems (40 mm) for seamless integration.
- 4Enhanced Safety Features: Leading auxiliary switches with respect to main contacts for added safety.
- 5Easy Mounting Options: Direct bus bar mounting option for ease of installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 000, 40mm busbar system, box terminal, 3P, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Mounting Type | 40mm Busbar System | Fuse Rating | Size: 000 |
Terminal Type | Box Terminal | Rated Current In(A) | 160 |
Specifications | 3NP112【160A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1123-1BB20 |
Specifications may be subject to change without notice
