Product Model

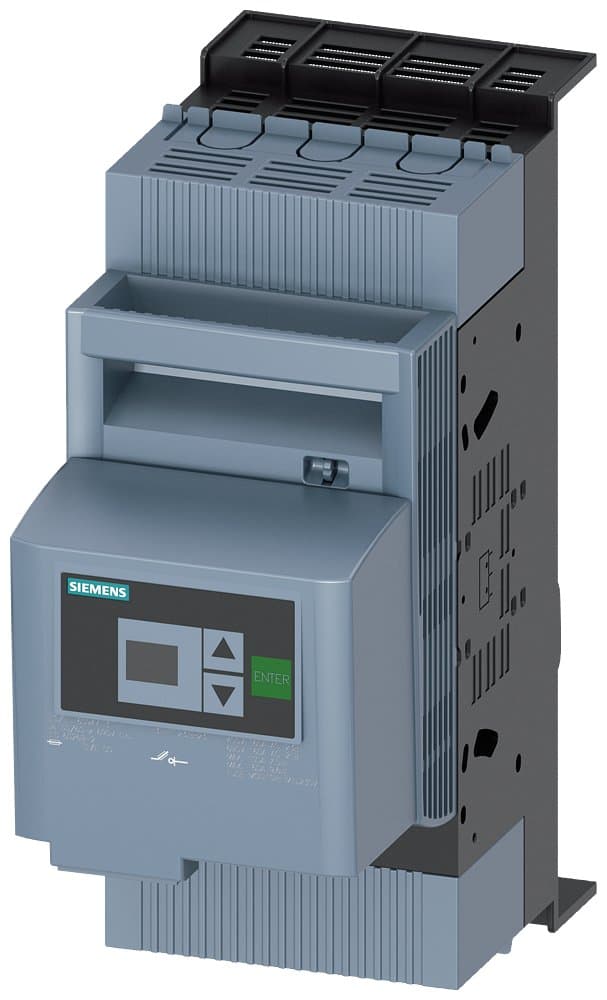

3NP1123-1BB23
Selling Points
- 1Designed to ensure safe and efficient power distribution.
- 2Suitable for installations where space is limited.
- 3Ideal for applications requiring three-phase power control.
- 4Supports high current requirements in electrical systems.
- 5Specifically designed for 8US busbar systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 000, 40mm busbar system, box terminal, 3P, electronic EFM20 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Mounting Type | 40mm Busbar System |
Fuse Rating | Size:000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | EAR99 | AL | N |
Model Number | 3NP1123-1BB23 |
Specifications may be subject to change without notice
