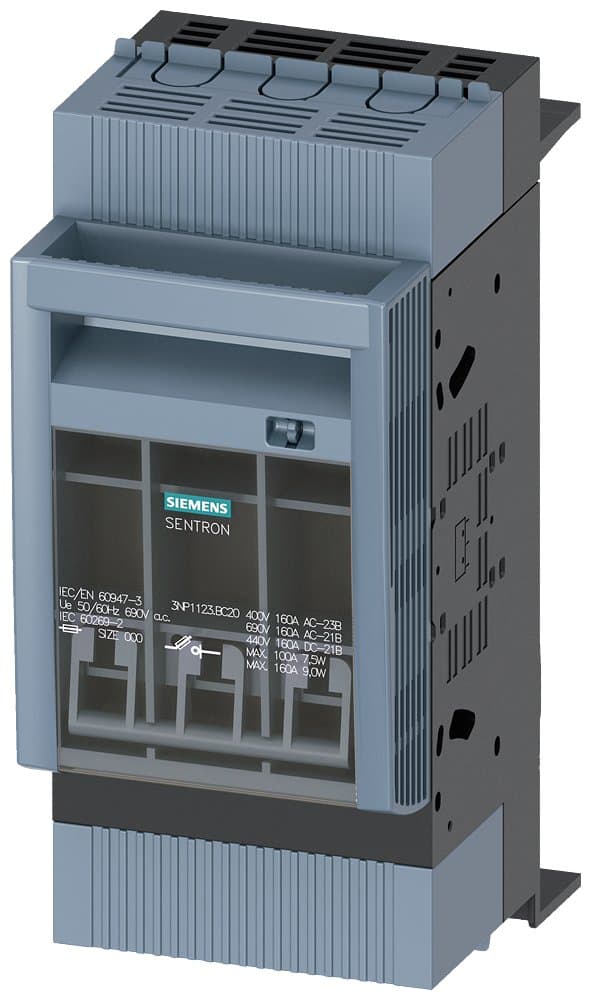

Product Model
3NP1123-1BC20
Selling Points
- 1High Current Rating: 160 A for efficient power distribution.
- 2Compact Design: Suitable for 60 mm busbar systems, ensuring space-saving installations.
- 3Safety Features: Designed with safety monitoring in mind, ensuring secure operation.
- 4Versatile Mounting: Front mounting option (EF007246) for easy installation.
- 5Durable Construction: Built with robust materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 000, 60mm busbar system, box terminal, 3P, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Installation Type | 60mm Busbar System | Fuse Rating | Size:000 |
Terminal Type | Box Terminal | Rated Current In(A) | 160 |
Specifications | 3NP112【160A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | EAR99 |
AL | N | Model Number | 3NP1123-1BC20 |
Specifications may be subject to change without notice
