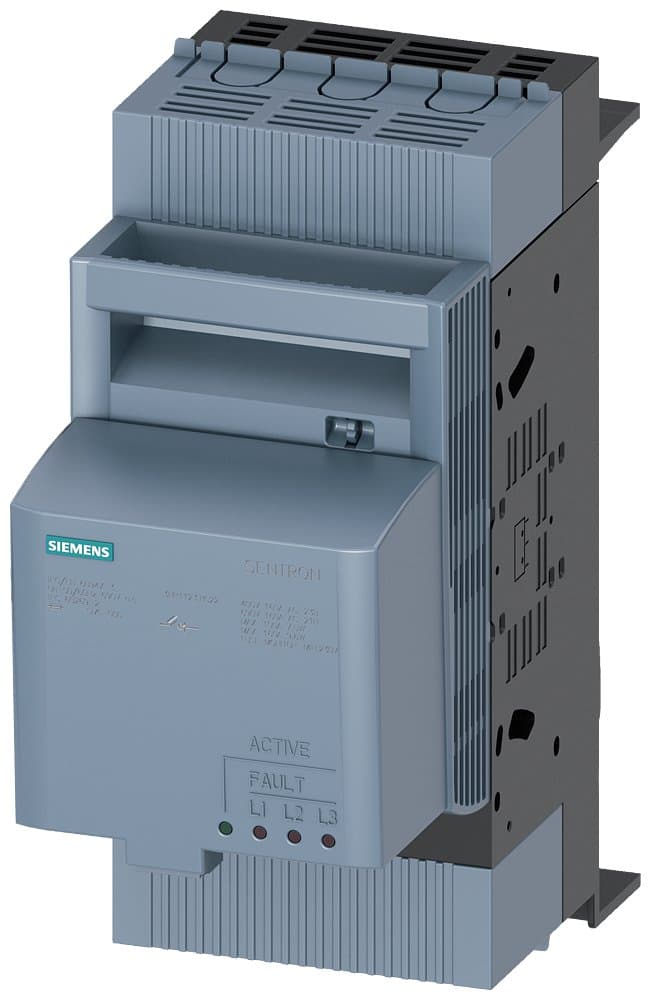

Product Model
3NP1123-1BC22
Selling Points
- 1Protects users from electric shock with permanent switch-on and switch-off under load.
- 2Suitable for 8US busbar systems, ensuring seamless integration into your electrical setup.
- 3Handles up to 160 A, making it ideal for demanding applications.
- 4Built with robust materials for long-lasting performance and reliability.
- 5Meets IEC 60947-3 and UL 508 standards for maximum safety and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated Current 160A, Size 000, 60mm Busbar System, Box Terminal, 3P, Electronic EFM10 Fuse Monitoring, 32/70mm Cover with Contact Protection, Suitable for Busbar and Rittal Systems without Base | Others | 32/70mm Cover with Contact Protection, Suitable for Busbar and Rittal Systems without Base |
Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Specification | Size: 000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specification | 3NP112【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1123-1BC22 |
Specifications may be subject to change without notice
