Product Model

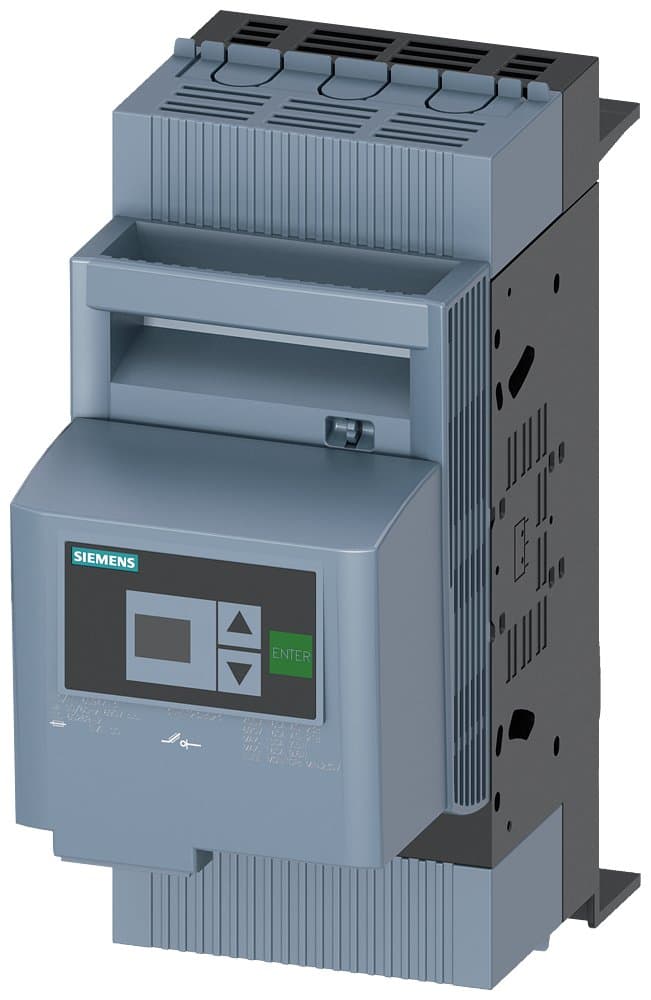

3NP1123-1BC23
Selling Points
- 1Enhanced Protection: Provides reliable overload and short-circuit protection for industrial plants.
- 2User-Friendly Design: Incorporates reach-round and touch protection to prevent user contact with current conducting parts.
- 3Modular Design: Offers maximum flexibility with modular design and universal accessories.
- 4Versatile Mounting Options: Suitable for floor mounting, standard mounting rail, and Siemens busbar system.
- 5Fast Installation: Allows for fast and safe conversion for cable feeder top/bottom with electronic fuse monitoring function.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated Current 160A, Size 000, 60mm Busbar System, Box Terminal, 3P, Electronic EFM20 Fuse Monitoring, 32/70mm Cover with Contact Protection, Suitable for Busbar and Rittal Systems without Base | Others | 32/70mm Cover with Contact Protection, Suitable for Busbar and Rittal Systems without Base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Specification | Size: 000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specification | 3NP112【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1123-1BC23 |
Specifications may be subject to change without notice
