Product Model

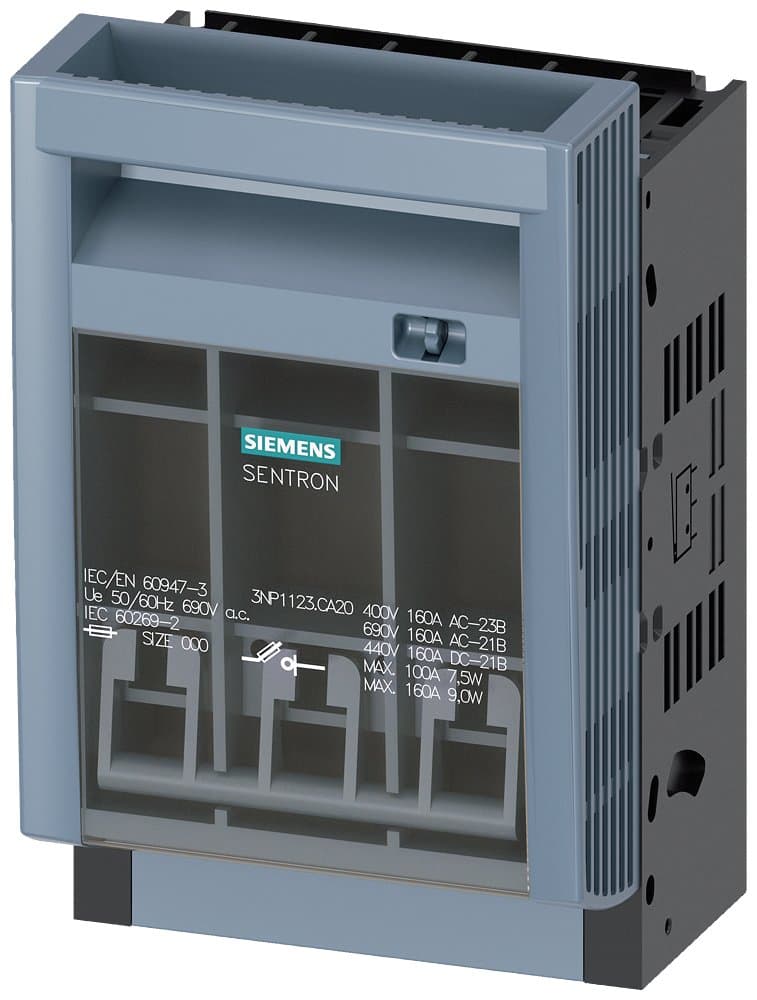

3NP1123-1CA20
Selling Points
- 1160 A for robust power handling.
- 2Suitable for floor, surface, and busbar mounting.
- 3LV HRC fuse type and IP20 degree of protection.
- 4Cover handle design and large inspection window for easy operation.
- 5Provides reliable overload and short-circuit protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 000, surface mounting, box terminal, 3P, | Installation Type | Surface Mounting |
Fuse Specification | Size: 000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1123-1CA20 |
Specifications may be subject to change without notice
