Product Model

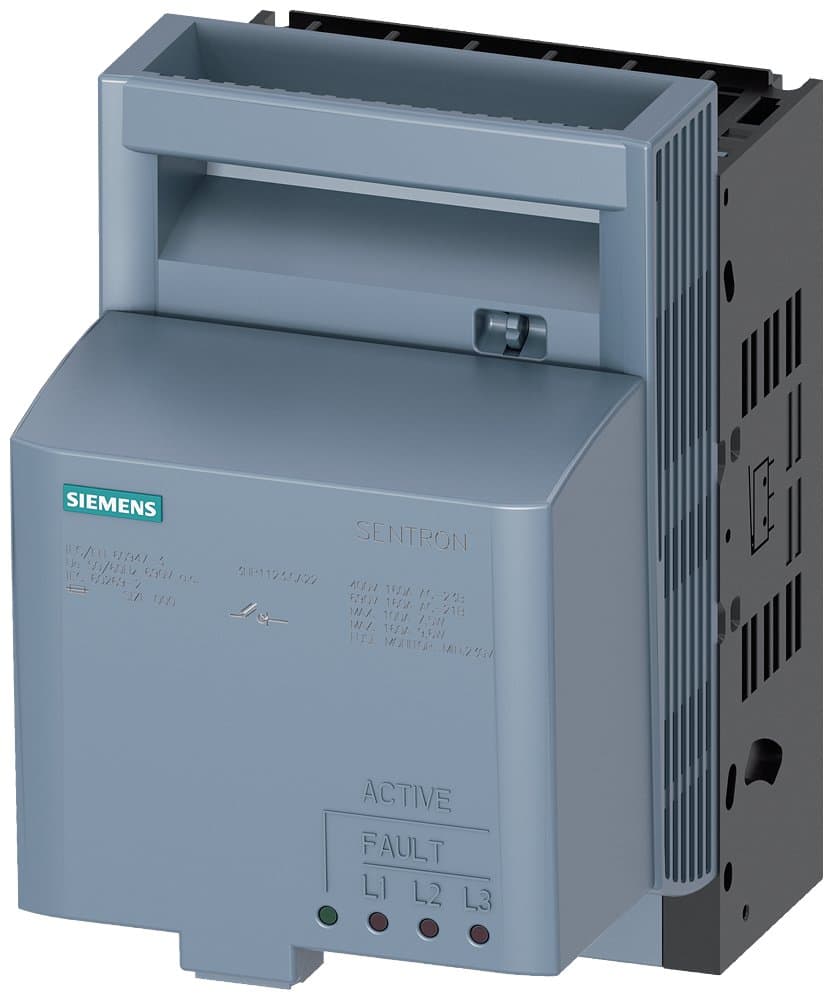

3NP1123-1CA22
Selling Points
- 1High Current Capacity: Handles 160A of electrical current.
- 2Electronic Fuse Monitoring: Equipped with advanced electronic fuse monitoring for enhanced safety.
- 3Versatile Installation: Suitable for assembly on mounting plates and box terminals.
- 4Three-Pole Configuration: Designed as a 3-pole fuse switch disconnector.
- 5Reliable Protection: Provides reliable protection against electrical faults and overloads.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 000, surface mounting, box terminal, 3P, electronic EFM10 fuse monitoring, | Fuse Monitoring | Electronic EFM10 Fuse Monitoring |
Mounting Type | Surface Mounting | Fuse Rating | Size: 000 |
Terminal Type | Box Terminal | Rated Current In(A) | 160 |
Specifications | 3NP112【160A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1123-1CA22 |
Specifications may be subject to change without notice
